Lennox 12X09 Control Kit

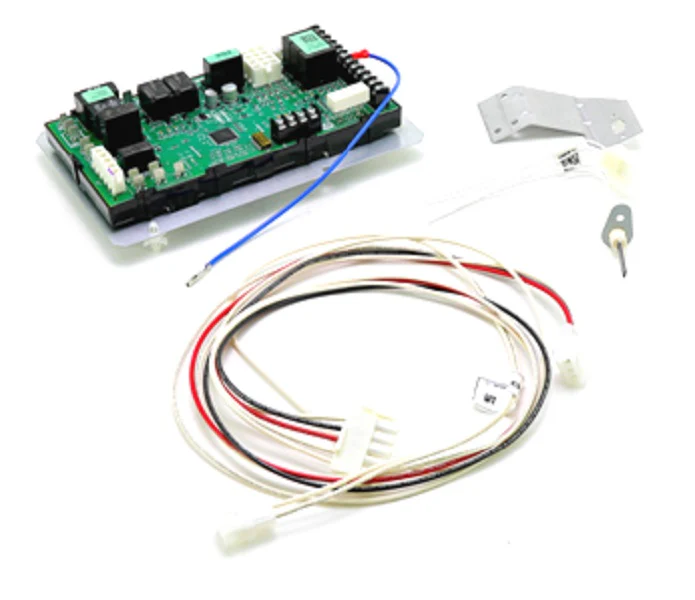

The Lennox 12X09 Control Kit is a critical OEM 2-stage ignition control replacement designed for high-performance gas furnaces. This HVAC furnace controller (Manufacturer #614148-02) manages the complete ignition sequence, ensuring precise timing for gas flow and flame sensing across dual-stage heating cycles. As a direct-fit Lennox 614148-02 replacement, this kit resolves common field issues such as nuisance lockouts and intermittent ignition failures in G60DF, G60UH, and G61MP systems. By utilizing an integrated electronic circuit, the module optimizes burner efficiency and reduces fuel consumption while providing baseline safety monitoring for industrial and residential applications. The kit includes the replacement ignition control board, a hot surface ignitor, a mounting bracket, and a dedicated 5-pin wire harness, facilitating a seamless installation for field technicians servicing Lennox furnaces.
Key Benefits- OEM Compatibility: Engineered as a direct drop-in replacement for Lennox 86W81 and related integrated furnace controls.
- Precise 2-Stage Logic: Enhances system efficiency by accurately managing low and high-fire heating demands.
- Complete Installation Kit: Includes the 614148-02 control board, a new ignitor, and updated harnesses to ensure all critical wear components are replaced simultaneously.
- Advanced Diagnostics: Built-in LED indicators simplify troubleshooting by identifying specific flame sensing or hardware faults quickly at the job site.
Which furnace models are compatible with the 12X09 kit?
This kit is specifically designed for Lennox G60DF, G60UH, and G61MP series gas furnaces, as well as several related models from Allied, Armstrong, and Ducane.
What is included in the Lennox 12X09 replacement kit?
The package contains the 2-stage ignition control board, a hot surface ignitor with bracket, a 5-pin wiring harness, and diagnostic code stickers for the furnace cabinet.
Can this module replace the older 86W81 ignition control?
Yes, the 12X09 is the official service replacement for the 86W81 and 614148-02 parts, providing updated internal logic for better reliability.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Lennox 12X09 Control Kit
The Lennox 12X09 Control Kit is a critical OEM 2-stage ignition control replacement designed for high-performance gas furnaces. This HVAC furnace controller (Manufacturer #614148-02) manages the complete ignition sequence, ensuring precise timing for gas flow and flame sensing across dual-stage heating cycles. As a direct-fit Lennox 614148-02 replacement, this kit resolves common field issues such as nuisance lockouts and intermittent ignition failures in G60DF, G60UH, and G61MP systems. By utilizing an integrated electronic circuit, the module optimizes burner efficiency and reduces fuel consumption while providing baseline safety monitoring for industrial and residential applications. The kit includes the replacement ignition control board, a hot surface ignitor, a mounting bracket, and a dedicated 5-pin wire harness, facilitating a seamless installation for field technicians servicing Lennox furnaces.
Key Benefits- OEM Compatibility: Engineered as a direct drop-in replacement for Lennox 86W81 and related integrated furnace controls.
- Precise 2-Stage Logic: Enhances system efficiency by accurately managing low and high-fire heating demands.
- Complete Installation Kit: Includes the 614148-02 control board, a new ignitor, and updated harnesses to ensure all critical wear components are replaced simultaneously.
- Advanced Diagnostics: Built-in LED indicators simplify troubleshooting by identifying specific flame sensing or hardware faults quickly at the job site.
Which furnace models are compatible with the 12X09 kit?
This kit is specifically designed for Lennox G60DF, G60UH, and G61MP series gas furnaces, as well as several related models from Allied, Armstrong, and Ducane.
What is included in the Lennox 12X09 replacement kit?
The package contains the 2-stage ignition control board, a hot surface ignitor with bracket, a 5-pin wiring harness, and diagnostic code stickers for the furnace cabinet.
Can this module replace the older 86W81 ignition control?
Yes, the 12X09 is the official service replacement for the 86W81 and 614148-02 parts, providing updated internal logic for better reliability.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
