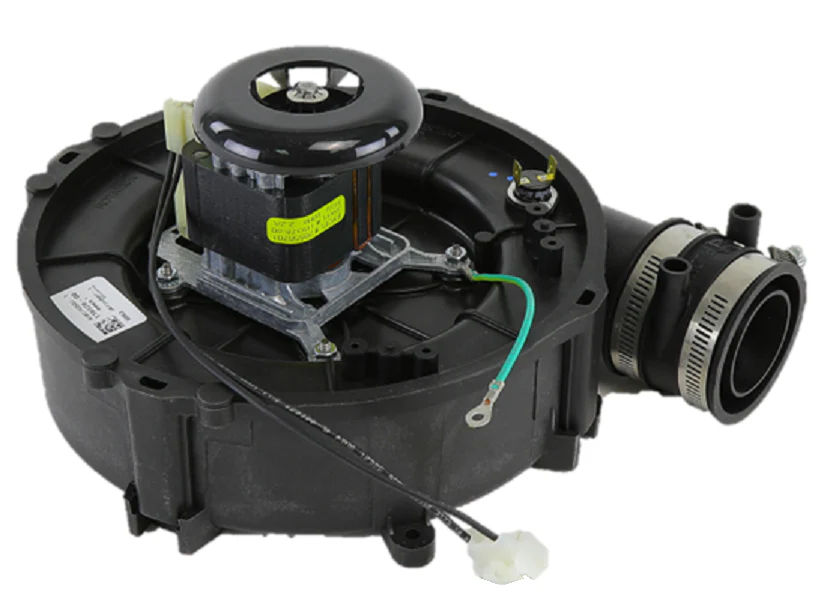

Lennox 12W47 Inducer Assembly
As a seasoned technician, you know that a failing Lennox 12W47 Inducer Assembly is often the root cause of pressure switch trip-outs and ignition failure in high-efficiency systems. This genuine OEM Lennox draft inducer blower (Part Number 20556201) is the precise replacement required for Aire-Flo AF92V series furnaces and select Lennox residential heating units. Engineered to manage optimal combustion airflow, this assembly pulls flue gases through the heat exchanger, ensuring a safe negative pressure environment before the ignition sequence begins. Designed for durability in condensing furnace environments, it resists the corrosive effects of moisture and combustion byproducts that typically seize lower-quality aftermarket motors. Whether you are performing a mid-season furnace repair or routine preventative maintenance, using this HVAC replacement part ensures the system maintains its AHRI-rated efficiency and tight technical tolerances without the noise or vibration issues common in non-OEM substitutes.
Key Benefits
- Direct OEM Compatibility: Specifically engineered for Aire-Flo AF92V and Lennox models like the AF92V050U3-1 to AF92V125U5-1, ensuring a drop-in fit without field modifications.
- Enhanced Combustion Efficiency: Maintains the exact venting pressure required to close the pressure switch and sustain a clean burner flame.
- Quiet Operation: Precision-balanced blower wheel and high-quality motor bearings reduce decibel levels during high-stage operation.
- Corrosion Resistance: Housing and motor components are built to handle the rigorous duty cycles of 90%+ AFUE gas furnaces.
Common Questions
How do I know if the 12W47 inducer motor is failing?
Technicians should look for AC voltage at the motor leads with no rotation, or listen for "hunting" speeds, grinding, or a high-pitched "whirring" that indicates bearing failure. If the pressure switch won't close despite a clear vent pipe, the inducer is likely not reaching its rated RPM.
Does this inducer assembly include the mounting gasket?
Yes, this Lennox 12W47 assembly typically includes the necessary gaskets for a proper airtight seal against the collector box, which is critical for preventing flue gas leakage into the cabinet.
Can I use this for non-condensing 80% AFUE furnaces?
No, this specific blower is designed for the high-static requirements of 92% and 95% AFUE Lennox HVAC systems. Always cross-reference your specific model number to ensure the motor torque and housing dimensions match.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
