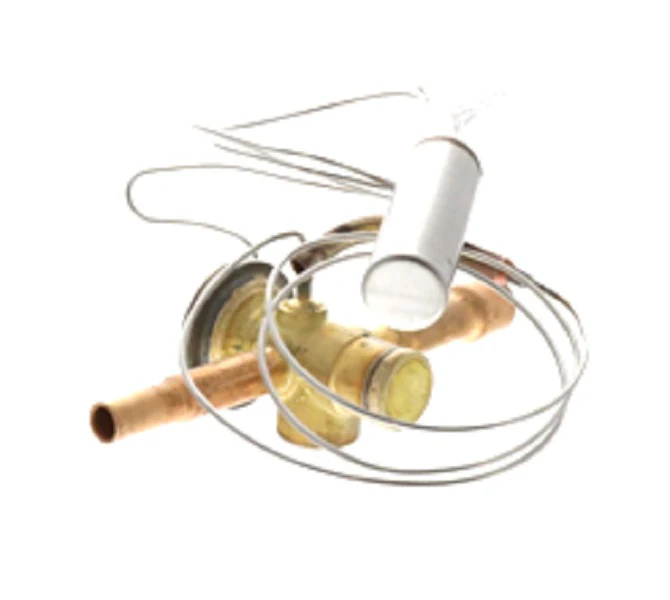

Lennox 12J41 TXV

For veteran technicians looking to restore factory-spec refrigerant metering, the Lennox 12J41 TXV (also identified as model 103366-13) is the precise OEM solution for R-410A systems. This thermostatic expansion valve is engineered for 3-ton (and some 3.5-ton) outdoor units, featuring a 3/8" ODM inlet and a 1/2" ODF outlet. Unlike standard non-bleed valves, this unit includes a 5% bleed port, which assists in pressure equalization during the off-cycle, making it an essential replacement for compatible Lennox heat pumps and air conditioners. Utilizing a genuine Lennox 12J41 ensures that the superheat levels remain within the tight tolerances required to protect the compressor from liquid floodback while maximizing evaporator efficiency. This mechanical refrigerant controller is designed for durability in high-demand residential and light commercial applications, maintaining stable performance under varying thermal loads.

Key Benefits:

• Precise Superheat Management: Actively adjusts refrigerant flow to maintain optimal evaporator saturation, preventing coil starving or overfeeding.
• Off-Cycle Pressure Equalization: The integrated 5% bleed rate allows for smoother restarts by balancing high and low-side pressures.
• Direct OEM Fitment: Eliminates the need for field modifications, ensuring 3/8" ODM x 1/2" ODF connections align perfectly with existing liquid and suction lines.
• System Longevity: Helps prevent common issues like TXV hunting or compressor strain by providing consistent metering across all operating conditions.

Common Questions:

• How do I know if the TXV is failing? Look for high evaporator superheat (starving) or very low superheat with liquid slugging symptoms. Verify by checking if the sensing bulb responds to temperature changes with a corresponding jump in suction pressure.
• Can I use this for non-bleed applications? This valve has a 5% bleed port; you must verify that the internal piping and compressor type of the specific Lennox model support a bleed-style valve for proper off-cycle cooling.
• What is the correct sensing bulb placement? The bulb should be securely strapped to the suction line at the 4 or 8 o’clock position and properly insulated to ensure it only reads line temperature, not ambient air.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
