Lennox 12J16 Sequencer

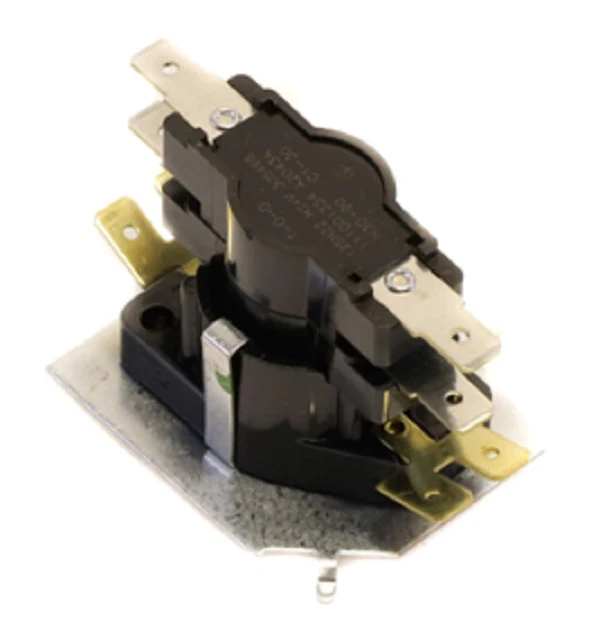

The Lennox 12J16 Heat Sequencer Relay is a critical OEM thermal control designed for staged electric heating in air handlers and furnaces. Engineering specifications for this 24V thermal sequencer (part number 104284-01) ensure a staggered activation of heat strips to prevent line voltage spikes and circuit breaker tripping during high-demand cycles. As a DPDT normally open (N.O.) sequencer, it manages multiple circuits simultaneously, providing a reliable 30–90 second ON delay and a 1–30 second OFF delay for precise blower and element coordination.
Replacing a sticking or open sequencer restores proper HVAC heat staging and eliminates common issues like cold blow or short cycling. Built to withstand 50/60 Hz operation, the Lennox 12J16 features high-temp resistant housing and standard 1/4" quick-connect terminals for seamless integration into existing Lennox control voltage circuits. Field testing with a multimeter should confirm 24VAC across the thermal heater to initiate contact closure; failure to close within the specified timing indicates a degraded internal bimetal disc and necessitates immediate replacement to maintain system safety and performance.
Key Benefits- Optimized Element Staging: Prevents excessive current draw by sequencing heat kits in timed intervals.
- Direct OEM Compatibility: Engineered specifically for Lennox air handlers and electric furnaces requiring part 104284-01.
- Enhanced System Reliability: Controls both the heater elements and the blower fan to ensure proper airflow before heat intensification.
- Industrial Grade Build: Heavy-duty DPDT configuration handles high-amperage loads across multiple heating stages.
How do I know if my Lennox 12J16 sequencer is bad?
Common failure symptoms include elements staying stuck "on" (causing overheating), elements failing to energize (no heat), or the blower running continuously. You can troubleshoot by checking for 24V at the heater base and testing for continuity across the M1-M2 terminals after the timing delay has elapsed.
Can I use the 12J16 to replace a single-pole sequencer?
While the 12J16 is a Double Pole Double Throw sequencer, it can often replace lower-pole models provided the timing specs and voltage match the original wiring diagram. However, always refer to the specific air handler schematic to ensure proper terminal mapping.
What causes a heat sequencer to smoke or smell?
An acrid electrical smell often indicates a burned-out thermal heater within the sequencer base or pitted contacts creating high resistance. If you detect a burning plastic odor, the component should be replaced immediately to prevent terminal melting.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $58.96
-65%$58.96
$20.64Lennox 12J16 Sequencer
The Lennox 12J16 Heat Sequencer Relay is a critical OEM thermal control designed for staged electric heating in air handlers and furnaces. Engineering specifications for this 24V thermal sequencer (part number 104284-01) ensure a staggered activation of heat strips to prevent line voltage spikes and circuit breaker tripping during high-demand cycles. As a DPDT normally open (N.O.) sequencer, it manages multiple circuits simultaneously, providing a reliable 30–90 second ON delay and a 1–30 second OFF delay for precise blower and element coordination.
Replacing a sticking or open sequencer restores proper HVAC heat staging and eliminates common issues like cold blow or short cycling. Built to withstand 50/60 Hz operation, the Lennox 12J16 features high-temp resistant housing and standard 1/4" quick-connect terminals for seamless integration into existing Lennox control voltage circuits. Field testing with a multimeter should confirm 24VAC across the thermal heater to initiate contact closure; failure to close within the specified timing indicates a degraded internal bimetal disc and necessitates immediate replacement to maintain system safety and performance.
Key Benefits- Optimized Element Staging: Prevents excessive current draw by sequencing heat kits in timed intervals.
- Direct OEM Compatibility: Engineered specifically for Lennox air handlers and electric furnaces requiring part 104284-01.
- Enhanced System Reliability: Controls both the heater elements and the blower fan to ensure proper airflow before heat intensification.
- Industrial Grade Build: Heavy-duty DPDT configuration handles high-amperage loads across multiple heating stages.
How do I know if my Lennox 12J16 sequencer is bad?
Common failure symptoms include elements staying stuck "on" (causing overheating), elements failing to energize (no heat), or the blower running continuously. You can troubleshoot by checking for 24V at the heater base and testing for continuity across the M1-M2 terminals after the timing delay has elapsed.
Can I use the 12J16 to replace a single-pole sequencer?
While the 12J16 is a Double Pole Double Throw sequencer, it can often replace lower-pole models provided the timing specs and voltage match the original wiring diagram. However, always refer to the specific air handler schematic to ensure proper terminal mapping.
What causes a heat sequencer to smoke or smell?
An acrid electrical smell often indicates a burned-out thermal heater within the sequencer base or pitted contacts creating high resistance. If you detect a burning plastic odor, the component should be replaced immediately to prevent terminal melting.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
