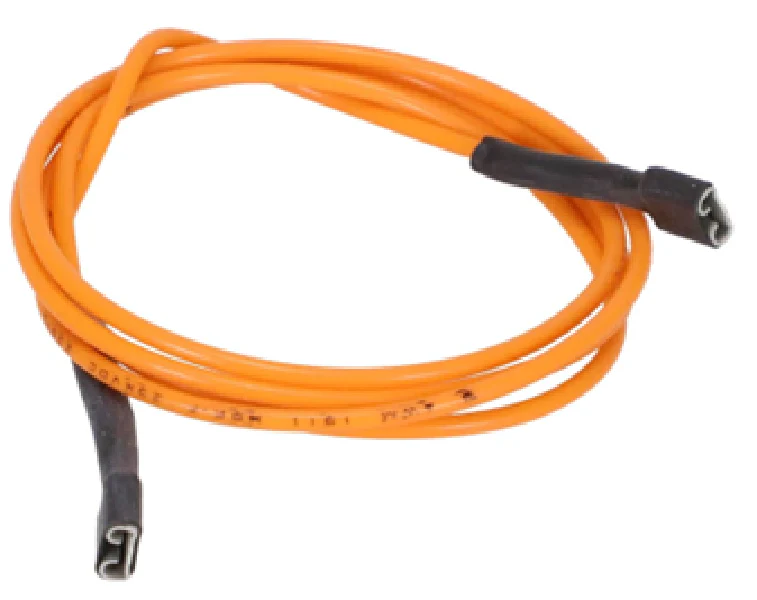

Lennox 11X26 Electrode Lead Female
The Lennox 11X26 is a mission-critical electrode lead female .250 connector designed to maintain circuit integrity within high-voltage HVAC ignition systems. Built specifically for Lennox furnace repair, this lead bridges the gap between the ignition control board and the spark electrode or flame sensor. In gas furnace burner systems, achieving consistent electrical continuity is paramount; any signal loss at the .250-inch spade terminal can result in intermittent sparking or premature burner lockout. This OEM-spec lead is rated for the high-temperature environments found near the burner box and ensures that microamp signals from the flame rod reach the processor without resistance interference. For technicians troubleshooting furnace ignition failure or erratic flame rectification, inspecting this lead for terminal tension and wire jacket degradation is a standard diagnostic step. Replacing worn leads with the 11X26 ensures a secure mechanical fit and reliable signal transmission during the ignition sequence.
Key Benefits:
- Precision-engineered .250-inch female spade connector for a secure, low-resistance interface.
- Direct replacement for Lennox ignition wiring to ensure factory-standard performance.
- Optimized for high-voltage spark delivery and low-microamp flame sensing signals.
- Constructed with durable insulation to withstand standard burner compartment temperatures.
- Helps eliminate nuisance service calls related to intermittent ignition issues.
Common Questions:
What function does the Lennox 11X26 serve in a gas furnace?
It acts as the primary conduit for electrical energy between the ignition control module and the burner's ignition components, facilitating the spark or sensing the flame presence.
Will this connector fix a furnace that keeps locking out?
If the lockout is caused by high resistance or a loose connection at the electrode or flame sensor, installing a new Lennox 11X26 lead can restore stable operation.
How is the terminal size verified for compatibility?
This lead utilizes a standard 1/4-inch (.250) female spade terminal, which is the most common size for residential furnace electrodes and control boards.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
