Lennox 10Y61 Motor Module
The Lennox 10Y61 Programmed Motor Module is an essential OEM component designed for high-performance ECM applications in compatible residential furnaces and air handlers. Engineered by Genteq under the ECM 5.0 Eon architecture, this module serves as the direct replacement for R46132-004 and 10B67. As a vet in the field, you know that ECM motor troubleshooting often points to the control module rather than the motor itself. This programmed motor control is pre-configured to manage specific blower motor speed and airflow requirements for models like the G2D95BT080V16C-1. Operating at 115V with a 3/4 HP rating, this Lennox replacement part ensures your system maintains its 1100 RPM design spec. When swapping these, always check for 3-pin and 5-pin terminal configurations to ensure a drop-in HVAC blower motor module replacement. Replacing a failed 46132-104 control with this genuine Lennox 10Y61 restores the variable-speed efficiency and precise climate control that modern high-efficiency Lennox units require for optimal static pressure management.
Key Benefits
- Direct OEM Fit: Specifically programmed to replace R46132-004 and 10B67, eliminating the need for field programming or complicated wiring modifications.
- Enhanced Efficiency: Utilizes Genteq ECM 5.0 Eon technology to provide variable speed control, reducing energy consumption compared to standard PSC motors.
- Rugged Construction: Built with robust internal components to withstand the thermal demands and vibration typical of high-static blower assemblies.
- Precision Airflow: Maintains factory-spec 1100 RPM output, ensuring proper heat exchanger cooling and consistent indoor air distribution.
- Broad Compatibility: Serving as a cross-over for multiple Allied Air brands including Armstrong, Concord, and Ducane, simplifying inventory for multi-brand contractors.
Common Questions
Can I use the 10Y61 to replace a module with a different voltage rating?
No. This module is rated strictly for 115V applications. Installing a 115V module on a 230V system will result in immediate component failure and potential damage to the blower motor.
How do I know if the module is bad or the motor windings have failed?
Perform a phase-to-phase resistance test on the 3-pin motor plug. If the resistance across any two leads is less than 20 ohms and consistent across all combinations, the motor is likely intact, and the 10Y61 motor module is the likely failure point.
Is the mounting hardware included with this replacement?

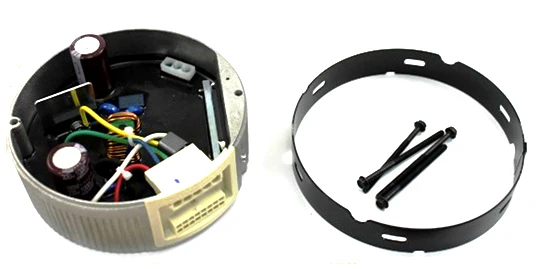

Standard kits typically include the ECM 5.0 Eon Motor Module, metal spacer, and appropriate mounting screws (2 1/2" and 2 3/4") to ensure a secure fit to the motor housing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
