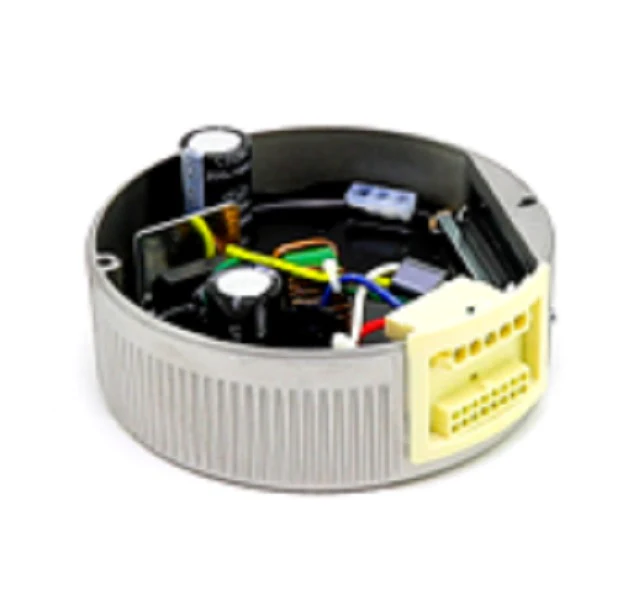

Lennox 10Y47 Control Module
The 10Y47 is a genuine OEM Lennox 10Y47 Control Module designed for high-efficiency ECM 5.0 programmable motors. As a veteran technician, you know that the Genteq 5.0 EON module is critical for maintaining the precise airflow and variable speed performance required in Elite Series and high-tonnage Lennox residential systems. This Lennox replacement part is engineered to interface directly with the motor’s internal sensors, regulating torque and RPM to match the specific static pressure of the ductwork without the efficiency drops associated with older PSC or X13 units.
When replacing a faulted furnace blower motor module, ensuring a match for the Lennox 5.0 ECM programmer version is non-negotiable. The 10Y47 provides advanced electronic braking and ramping shut-down sequences, which are essential for protecting the heat exchanger from thermal stress and reducing audible duct "oil-canning" during cycle changes. Designed for rugged commercial and residential duty, this HVAC motor controller features a weather-resistant potting compound to protect internal circuitry from moisture and vibration within the blower housing.
-
Key Benefits:
- Direct OEM Compatibility: Specifically programmed for Lennox ECM 5.0 EON motor architectures, ensuring plug-and-play communication without field programming.
- Enhanced Efficiency: Optimizes power factor correction and reduces amperage draw by precisely managing motor winding excitation.
- Variable Speed Control: Maintains consistent CFM across varying static pressures, supporting 2-stage and modulating furnace operations.
- Technical Reliability: Built with heavy-duty capacitors and thermal protection to withstand the rigorous start/stop cycles of modern high-efficiency HVACR systems.
Common Questions:
Can I use a 5.0 module on a 2.3 motor?
While a 5.0 module is backward compatible with some 2.3 motor bodies as a replacement kit, the specific programming must match the equipment’s BTU rating and blower wheel size to prevent airflow errors.
How do I diagnose a failed module versus a failed motor?
Check for line voltage at the 5-pin connector and 24V signals at the 16-pin harness. If the motor turns freely by hand but fails to initiate the "rocking" start sequence despite having correct power and signals, the module is likely the point of failure.
Does this module require a separate programmer?
No, the 10Y47 is a pre-programmed 5.0 module specifically for Lennox configurations, eliminating the need for complex field programming tools.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
