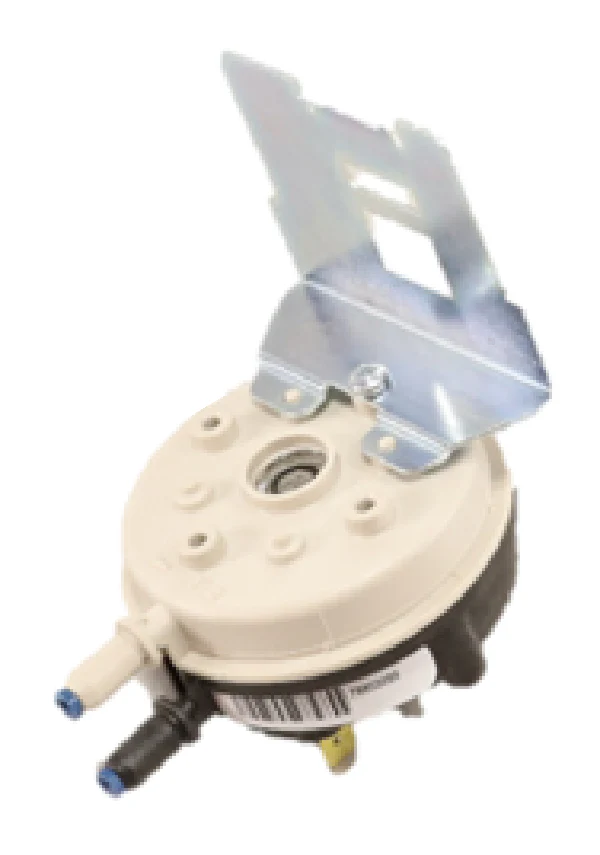

Lennox 10U93 Pressure Switch
The Lennox 10U93 Pressure Switch is a critical OEM safety component designed for precise airflow monitoring in Lennox, Armstrong, and Ducane furnace systems. This .65" WC SPST pressure switch functions by validating that the inducer motor is creating sufficient draft to safely vent combustion gases before allowing the ignition sequence to proceed. As a Single Pole Single Throw (SPST) normally open switch, it provides a reliable electrical signal to the integrated furnace control board, preventing system operation if venting obstructions or mechanical inducer failures are detected.
This factory-authorized part is the designated Lennox 10U93 replacement for several legacy and superseded part numbers including 102998-01, 103245-01, and 10U9301. Engineered for high-cycle durability in demanding residential heating environments, the 10U93 ensures your equipment maintains peak HVAC system performance and safety standards. Technicians should verify the pressure setpoint of -0.65" water column against the furnace rating plate to ensure exact laboratory-spec compatibility during maintenance or repair.
Key Benefits for HVAC Professionals
- OEM Precision: Genuine Lennox HVAC replacement part ensures the exact factory-calibrated setpoint for safe furnace ignition.
- Broad Compatibility: Direct pressure switch replacement for widely used Allied Air brands including Armstrong, Concord, and Ducane.
- Enhanced System Safety: Accurately monitors negative pressure to prevent hazardous operation during venting failures or inducer blockages.
- Reliable Switching: High-quality SPST contact configuration designed to withstand the electrical demands of residential furnace control circuits.
- Simplified Installation: Direct-fit design replaces Lennox 102998-01 and 103245-01 without the need for mounting modifications.
Common Questions
What are the symptoms of a failing Lennox 10U93 pressure switch?
A faulty switch often results in the furnace inducer running continuously without the burners igniting. Diagnostic LED codes on the control board typically point to an "Open Pressure Switch" or "Pressure Switch Failed to Close" error, often caused by a ruptured internal diaphragm or fouled contact points.
Can I use a universal pressure switch instead of the 10U93?
While universal switches exist, using the genuine Lennox 10U93 is recommended to ensure the -0.65" WC setpoint matches the original engineering specifications exactly. Deviating from the factory pressure rating can lead to intermittent nuisance trips or unsafe combustion conditions.
Is the 10U93 compatible with Armstrong and Ducane furnaces?
Yes, as part of the Allied Air family, the 10U93 pressure switch is the correct OEM replacement for many Armstrong Air and Ducane models that utilize the same 102998-01 or 103245-01 part numbers.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
