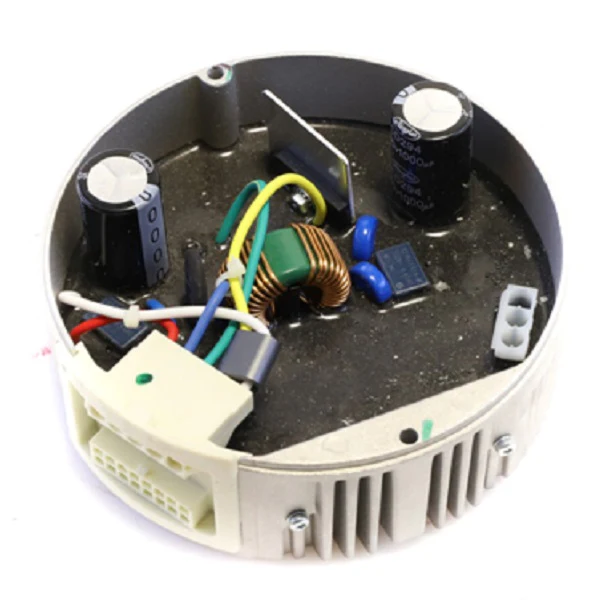

Lennox 10U45 Module Kit
The Lennox 10U45 Module Kit is a critical OEM replacement component designed for Genteq 5.0 ECM and Regal Beloit 2.3 variable speed blower motors. Engineered specifically for Lennox CBX32MV-036 air handlers and SL280V furnaces, this 611297-17 module kit includes the required spacer ring for proper physical alignment and moisture protection. Operating at 120/240V for 1/2 HP applications with a counterclockwise (CCW) rotation, this ECM motor controller is a backwards-compatible solution that restores precise airflow management and system efficiency. As a veteran technician, you know that 5.0 modules are frequently used to replace older 2.3 versions, though the inverse is not supported. This HVAC blower control handles complex signal processing from the main board to modulate motor speed, ensuring optimal static pressure performance in high-efficiency variable speed HVAC systems. Always verify phase-to-phase resistance on the motor windings before installing a new 10U45 control module to prevent premature failure from a shorted motor stator.
Key Benefits
- Direct OEM Compatibility: Seamlessly replaces 611297-17 and 10U4501 units in Lennox CBX32MV and G32V series.
- Enhanced Durability: Includes a high-grade spacer ring to ensure a watertight seal and proper heat dissipation between the module and motor.
- Multi-Voltage Versatility: Dual-rated for 120V and 240V inputs, making it suitable for a wide range of residential and light commercial air handlers.
- Improved System Efficiency: Restores the variable speed functionality required for consistent dehumidification and quiet startup cycles.
Common Questions
Can I use the 10U45 to replace a GE ECM 2.3 module?
Yes, the Genteq 5.0 module within this kit is designed to be backwards compatible with the older 2.3 series motors, provided the horsepower and voltage ratings match.
Do I need to replace the motor and module at the same time?
Not necessarily. However, if the motor windings show resistance to ground below 100k ohms, the 10B66 motor should be replaced alongside the 10U45 module to protect the new electronics.
Why is the spacer ring included in this kit?
The spacer ring is essential for preventing moisture ingress into the control electronics and ensures the internal 3-pin connector aligns perfectly with the motor housing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
