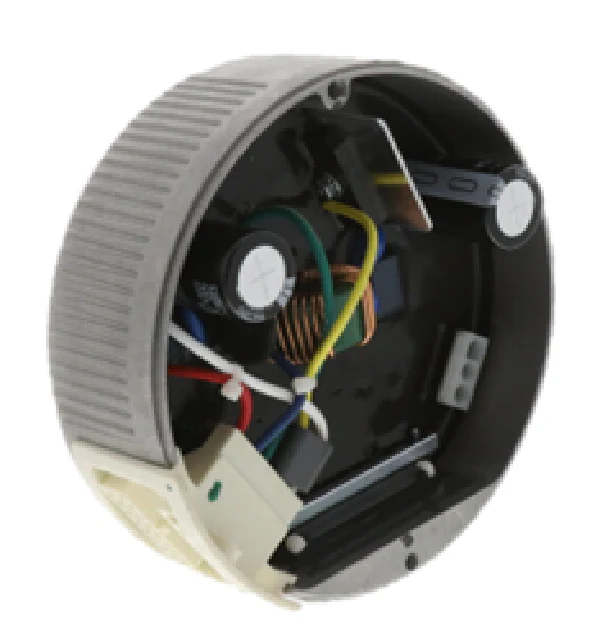

Lennox 10U44 ECM Module Kit
The Lennox 10U44 ECM Module Kit is a direct OEM replacement designed specifically for variable speed blower motor applications in CBX32MV-024/30 series air handlers. This ECM 5.0 control module provides the precise commutation required to manage high-efficiency airflow and sustain optimal static pressure performance across the system. By monitoring motor torque and speed, the Lennox 10U44 ensures consistent CFM delivery, which is critical for maintaining the proper heat transfer across the evaporator coil and preventing system freeze-ups or short-cycling.
For technicians in the field, this ECM module kit includes the necessary spacer ring and control module to resolve common failures such as "no-start" conditions or erratic motor "hunting" caused by damaged thermistors or blown capacitors. When performing a Lennox 10U44 installation, ensure that the 5-pin power connector and 16-pin signal harness are free of corrosion and that the system ground is secure. Using this genuine OEM Lennox HVAC part maintains the factory-programmed airflow profile and VFD-like efficiency, avoiding the integration issues often found with "universal" replacement alternatives.
Key Benefits- Precise Airflow Control: Maintains factory-spec CFM levels to ensure proper dehumidification and temperature regulation.
- Energy Efficiency: Leveraging electronically commutated motor technology reduces operational costs and meets modern FER standards.
- OEM Compatibility: Specifically engineered for Lennox CBX32MV air handlers, ensuring plug-and-play communication with the main control board.
- Robust Construction: Designed to withstand high-vibration environments and thermal stressors found in air handling units.
How do I confirm if the 10U44 module has failed?
Technicians should first verify that high voltage (120/240VAC) is present at the 5-pin plug and that a 24VAC demand is reaching the 16-pin harness. If voltage is present but the motor fails to turn or oscillates, the ECM module is likely failed. Do not replace the entire motor without first checking for a burnt inrush current limiter inside the module end-bell.
Is the spacer ring required for every installation?
Yes, the included spacer ring is vital for proper fitment and moisture protection. It ensures the Lennox 10U44 kit seals correctly against the motor housing to prevent internal short circuits caused by condensation or debris.
Does this module require field programming?
The 10U44 ECM Module comes factory-programmed for compatible Lennox units. However, always verify the dip switch settings on the main air handler board to ensure the correct airflow tonnage is selected for the specific outdoor unit match-up.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
