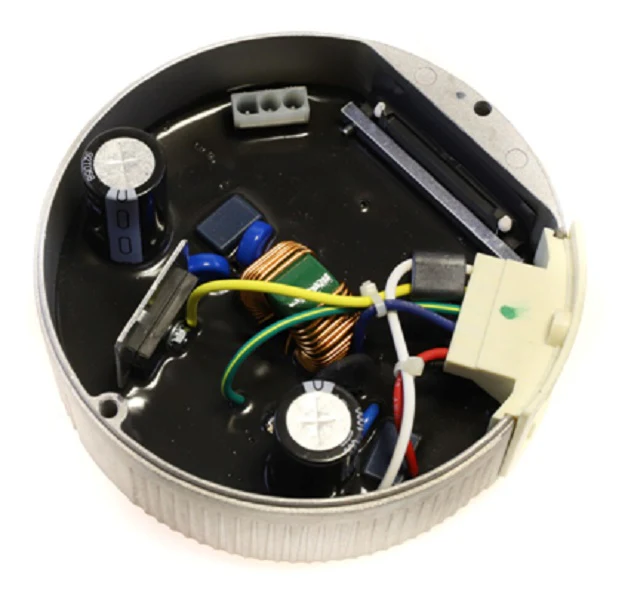

Lennox 10U43 Motor Module
The Lennox 10U43 Motor Module (Genteq 5.0 Eon) is an essential OEM replacement ECM control module kit designed for high-efficiency blower assemblies. Specifically engineered for compatibility with Lennox CBX32MV series air handlers and variable-speed furnaces, this module (model 611297-15) manages precise airflow regulation by processing signals from the system board to adjust motor torque and RPM. As a veteran-grade HVAC blower motor parts solution, it serves as the direct replacement for the 1/2 HP Genteq 5.0 ECM, providing the consistent air volume required for dual-stage and communicating systems. When replacing a failed 10U43 ECM controller, ensure the blower wheel is balanced to prevent vibration-induced failure of the sensitive power electronics. This kit includes the necessary adapter ring and mounting hardware for a standard 4-bolt configuration, facilitating a secure mechanical seal and long-term HVAC system efficiency. Use an inline protector to shield the Lennox replacement motor module from voltage transients during high-demand operation.
Key Benefits- Direct OEM Compatibility: Engineered specifically for Lennox variable-speed units, ensuring seamless integration with existing communication protocols.
- Precision Airflow Control: Utilizes advanced ECM 5.0 technology to maintain consistent CFM regardless of static pressure changes in the ductwork.
- Enhanced Efficiency: Optimizes motor performance, contributing to reduced operational costs and improved dehumidification cycles.
- Complete Installation Kit: Includes the Lennox 611297-15 module, spacer ring, and multiple mounting screw lengths to fit various housing depths.
What are the signs of a failing motor module?
Technicians typically encounter an "ECM No-Start" condition. If the motor has power and the windings show proper resistance, but the blower fails to ramp up, the Lennox 10U43 Motor Module has likely suffered thermal breakdown or a failed thermistor.
Is this compatible with non-communicating systems?
The 10U43 is designed primarily for Lennox CBX32MV units. While it supports some 24V applications, it is optimized for high-end variable-speed performance. Always verify the part number on the existing Genteq module before swapping.
Do I need to replace the entire motor?
In many cases, only the control module fails. Replacing the Lennox ECM control kit is a cost-effective way to restore functionality without pulling the entire motor assembly, provided the mechanical bearings and windings are intact.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
