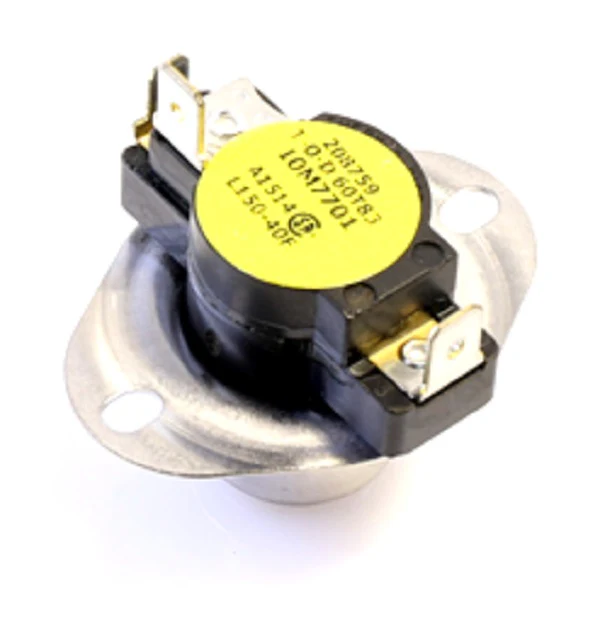

Lennox 10M77 Limit Control
The Lennox 10M77 Limit Control (part number 10M7701) is an OEM-standard L150-40F snap-disc safety switch engineered for high-performance thermal regulation in residential and commercial furnaces. This high-limit cutout opens the circuit at 150°F and features a 40°F differential, ensuring the heat exchanger remains within safe operational parameters to prevent structural fatigue and secondary damage. As a critical HVAC safety component, this fixed-setting limit control provides an automatic reset function, maintaining continuity during standard heating cycles while offering instantaneous protection during restricted airflow or over-temperature events.
Designed for universal compatibility with numerous Lennox, Armstrong, and Ducane gas-fired units, the Lennox 10M77 utilizes a standard 3/4-inch disc for seamless integration into existing mounting brackets. This OEM furnace limit switch is built to withstand high-current inductive loads and frequent cycling, making it the reliable choice for contractors performing a Lennox furnace repair. Utilizing genuine 10M77 technical specifications ensures that the system’s original safety certifications and factory airflow logic are preserved, preventing nuisance trips and ensuring consistent burner execution.
Key Benefits:- Precise Thermal Calibration: Factory-set L150-40F ratings provide accurate shutdown benchmarks for maximum heat exchanger protection.
- OEM Engineering: Direct replacement for Lennox 10M77 and legacy 10M7701 parts, ensuring exact physical and electrical matching.
- Automatic Reset: Self-correcting logic restores electrical continuity once the temperature drops below the reset threshold.
- Broad Compatibility: Integrated into a wide range of Lennox Landmark and residential HVAC equipment platforms.
- What are the symptoms of a failing Lennox 10M77? Common indicators include the furnace blower running continuously without heat or the system short-cycling due to premature circuit opening.
- Can this part be used in different brands? While designed specifically for Lennox, Armstrong, and Ducane equipment, compatibility is strictly determined by the L150-40F specification and disc dimensions.
- Does this limit switch require manual resetting? No, this part is an automatic reset limit control that resets itself once the temperature falls 40 degrees below the opening setpoint.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
