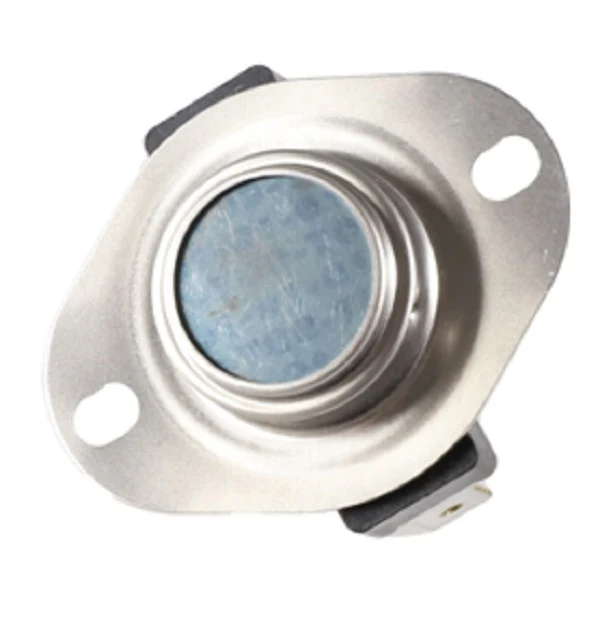

Lennox 10M66 Limit Switch
The Lennox 10M66 Limit Switch is a critical safety component engineered for precise thermal monitoring in high-efficiency gas furnaces and air handlers. For technicians diagnosing a Lennox furnace limit switch opening prematurely or failing to reset, this SPST (Single Pole Single Throw) thermal sensor provides the exact calibration required for OEM compliance and system safety. Operating on a normally closed circuit, the 10M66 is designed to break the electrical connection when the internal heat exchanger temperature exceeds the specific safety threshold, preventing HVAC high-limit trip scenarios that can lead to cracked heat exchangers or rollout issues. This genuine Lennox replacement part features a standardized mounting flange for a secure seal against the furnace plenum, ensuring accurate temperature sampling. When replacing a faulty furnace high limit switch, the 10M66 offers the reliability needed to maintain system uptime and ensure the induced draft blower and gas valve sequence operate within safe thermal parameters.
Technical Specifications & Benefits
- OEM Compatibility: Precision-engineered for Lennox, Armstrong, and AirEase furnace models.
- Thermal Range: Factory-calibrated trip points ensure consistent thermal protection without nuisance tripping.
- Industrial Build: Durable bimetal disc construction designed for high-cycle longevity in residential and light commercial environments.
- Simple Integration: Standard spade terminals allow for a direct-fit installation with existing wiring harnesses.
- Safety Compliance: Meets strict UL and CSA standards for primary furnace safety controls.
Common Contractor Questions
- What causes a limit switch like the 10M66 to trip repeatedly? Frequent tripping is usually indicative of restricted airflow, such as a clogged MERV-rated filter, a failing blower motor, or an undersized duct system.
- Can I bypass this switch for testing purposes? Only for momentary diagnosis by a qualified technician; operating a furnace without a functional Lennox 10M66 creates a significant fire hazard.
- How do I verify if the 10M66 is defective? Perform a continuity test across the terminals when the furnace is cool; a lack of continuity indicates the switch has failed in the open position.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $10.41
-65%$10.41
$3.64Lennox 10M66 Limit Switch
The Lennox 10M66 Limit Switch is a critical safety component engineered for precise thermal monitoring in high-efficiency gas furnaces and air handlers. For technicians diagnosing a Lennox furnace limit switch opening prematurely or failing to reset, this SPST (Single Pole Single Throw) thermal sensor provides the exact calibration required for OEM compliance and system safety. Operating on a normally closed circuit, the 10M66 is designed to break the electrical connection when the internal heat exchanger temperature exceeds the specific safety threshold, preventing HVAC high-limit trip scenarios that can lead to cracked heat exchangers or rollout issues. This genuine Lennox replacement part features a standardized mounting flange for a secure seal against the furnace plenum, ensuring accurate temperature sampling. When replacing a faulty furnace high limit switch, the 10M66 offers the reliability needed to maintain system uptime and ensure the induced draft blower and gas valve sequence operate within safe thermal parameters.
Technical Specifications & Benefits
- OEM Compatibility: Precision-engineered for Lennox, Armstrong, and AirEase furnace models.
- Thermal Range: Factory-calibrated trip points ensure consistent thermal protection without nuisance tripping.
- Industrial Build: Durable bimetal disc construction designed for high-cycle longevity in residential and light commercial environments.
- Simple Integration: Standard spade terminals allow for a direct-fit installation with existing wiring harnesses.
- Safety Compliance: Meets strict UL and CSA standards for primary furnace safety controls.
Common Contractor Questions
- What causes a limit switch like the 10M66 to trip repeatedly? Frequent tripping is usually indicative of restricted airflow, such as a clogged MERV-rated filter, a failing blower motor, or an undersized duct system.
- Can I bypass this switch for testing purposes? Only for momentary diagnosis by a qualified technician; operating a furnace without a functional Lennox 10M66 creates a significant fire hazard.
- How do I verify if the 10M66 is defective? Perform a continuity test across the terminals when the furnace is cool; a lack of continuity indicates the switch has failed in the open position.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
