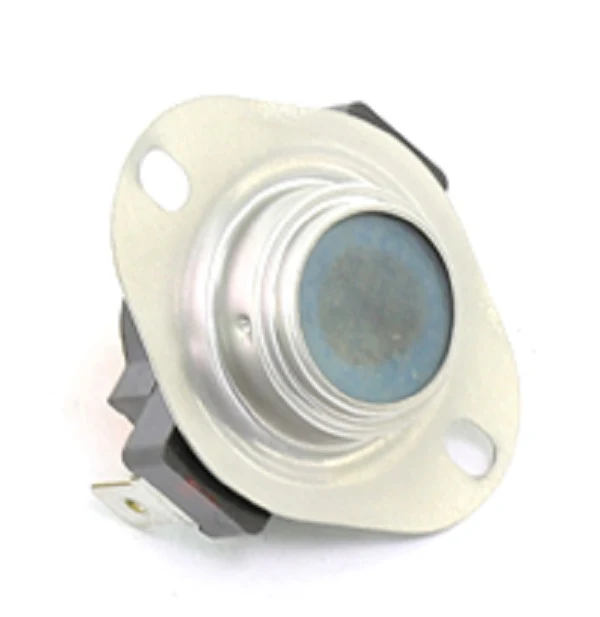

Lennox 10M61 Limit Switch
The Lennox 10M61 Limit Switch is a critical safety component designed for precise thermal regulation within residential and commercial furnace heating systems. As an OEM replacement part, this L180-40F limit control is engineered to open the electrical circuit when the plenum temperature reaches 180°F, effectively preventing heat exchanger damage and ensuring safe appliance operation. It features a 40°F differential, meaning the switch will automatically reset once the temperature drops to 140°F. This HVAC high limit switch is built with industrial-grade contacts to handle high-current loads, providing reliable fixed temperature control across a wide range of Lennox and Allied Air equipment. For technicians performing furnace troubleshooting or preventative maintenance, the 10M61 offers a direct-fit solution that maintains the original equipment’s airflow and safety specifications. Its SPDT configuration and orange coding simplify identification and installation in tight control compartments, making it a staple for any contractor’s service truck.
Key Benefits- Precise Thermal Protection: Calibrated at 180°F cut-out to protect against overheating and potential fire hazards.
- Automatic Reset: Integrated 40°F differential allows the system to resume operation once safe temperatures are restored.
- Direct OEM Compatibility: Ensures seamless integration with Lennox HVAC equipment without the need for field modifications.
- High-Current Durability: Robust electrical contacts designed to withstand the rigorous cycling of modern heating cycles.
- Compact Form Factor: Standard 1-inch height and mounting footprint for quick replacement in congested furnace cabinets.
What causes a limit switch like the 10M61 to trip frequently?
Frequent tripping is usually a symptom of restricted airflow. Check for dirty air filters, blocked return grilles, or a failing blower motor, as these issues cause heat to build up beyond the 180°F threshold.
Can I use an L180-40F to replace a switch with a different temperature rating?
No. Temperature ratings are specific to the heat exchanger’s design and airflow requirements. Replacing a higher or lower-rated switch with a 10M61 can result in either frequent nuisance tripping or dangerous overheating.
Is this switch compatible with Lennox G-series furnaces?
Yes, the 10M61 is widely used across many Lennox models, including the LGA and LGC series. Always verify the part number against your specific unit’s wiring diagram or parts list.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
