Lennox 10M11 EON Module

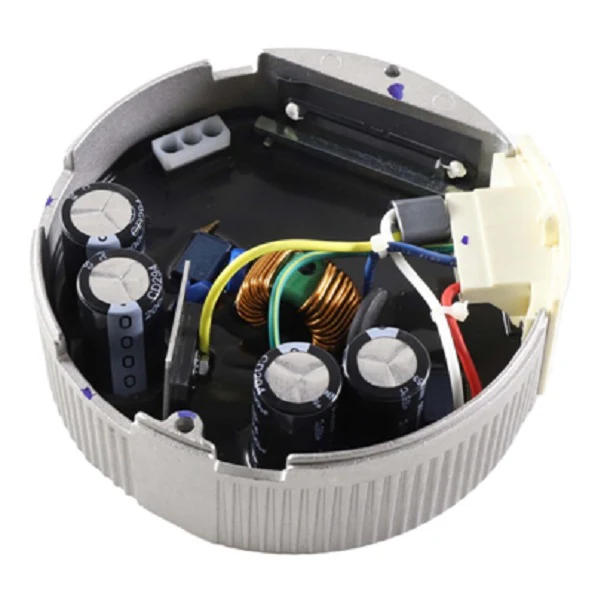

The Lennox 10M11 EON Module is a factory-programmed, variable-speed control board engineered specifically for ECM blower motors in Lennox residential HVAC systems. As a veteran technician, you know that the EON motor module is the intelligence behind the variable speed motor, interpreting low-voltage thermostat signals to adjust airflow dynamically. This 10M11 model (also identified as Lennox 611408-02) is a direct OEM replacement for Lennox 5.0 Eon motor series, commonly found in CBWMV and furnace units. Because it is a programmed EON module, it matches the factory torque and RPM curves required to maintain static pressure performance without manual field calibration.
Installation of this OEM Lennox 10M11 requires a strict focus on power quality; most premature failures in these HVAC control modules stem from voltage spikes or "dirty" power. We highly recommend inspecting the blower wheel for imbalances before swapping the module, as excessive vibration can lead to localized circuit fatigue. This module provides the precise modulation necessary for high-efficiency climate control, ensuring your customers experience consistent comfort and lower utility costs through accurate ECM motor control.
Key Benefits for the Contractor:
- Factory Programmed: Eliminates the need for field programming, ensuring the Lennox 10M11 works immediately with existing ECM 5.0 motor parameters.
- Precise Airflow Regulation: Optimizes variable speed motor performance to manage humidity and temperature more effectively than fixed-speed alternatives.
- OEM Compatibility: Guaranteed fit for Lennox HVAC systems utilizing the 611408-02 or 611480-02 part numbers.
- Enhanced Energy Efficiency: Reduces electrical consumption by modulating motor speed based on real-time demand.
- Technical Reliability: Designed specifically for the high-demand environments of furnace and air handler blower assemblies.
Common Technical Questions:
Can I use the 10M11 module to troubleshoot a blower that won't start?
Yes, if the motor windings have proper resistance but the motor fails to respond to 24VAC calls, the EON module is the likely failure point. Always check for 120/240V high voltage and 24V control signals first.
Does this module require a specific ECM protector?
While not mandatory, installing an inline surge protector is industry best practice to shield the sensitive electronics in the Eon motor module from transient voltage and lightning strikes.
Is this a "plug and play" replacement for the 10M11?
Yes, as an OEM Lennox part, it features the standard 5-pin high voltage and 16-pin control connectors for a direct swap-out into compatible Lennox blower motors.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
