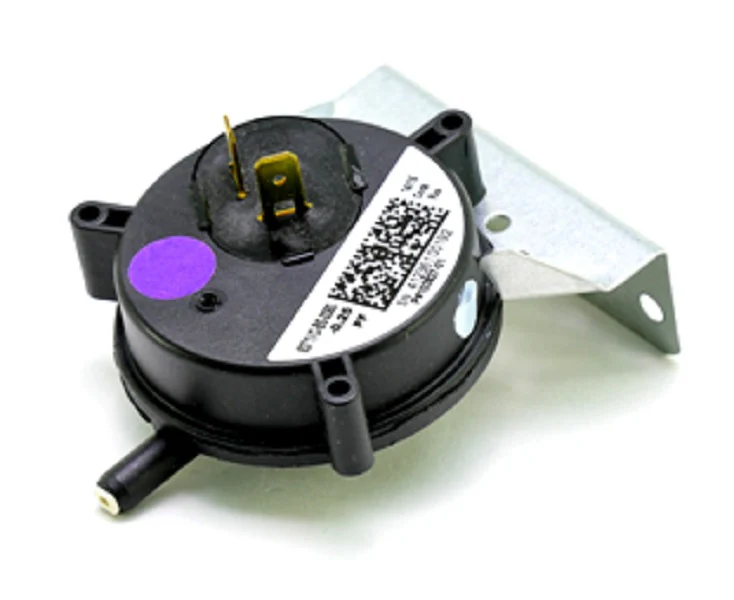

Lennox 10J73 Pressure Switch
The Lennox 10J73 Pressure Switch (Catalog Number 10J73, Model 103827-01) is a critical safety component designed for furnace applications to ensure the inducer motor is moving combustion air effectively. As a single-pole, normally open switch, it is calibrated to a fixed set point of -0.25 PF (inches water column), making it a precise replacement for the combustion air prover in Lennox G21, G24, G27, G28, G30, and G37 series furnaces. This HVAC pressure switch monitors the vacuum pressure created by the draft inducer and closes the ignition circuit only when proper venting is established, preventing the buildup of flue gases.
For service technicians, the Lennox 10J73 features a compact design with an integrated mounting bracket for fast installation in tight cabinet spaces. Cross-referencing technical data confirms compatibility with multiple Armstrong and Ducane furnace models as a direct OEM replacement part. When troubleshooting common heating failures, this air pressure switch provides the reliable differential sensing required for high-efficiency operation and system safety. Incorporating this genuine furnace component ensures original equipment performance and electrical specifications are maintained without the inconsistencies of universal alternatives.
Key Benefits
- Broad Compatibility: Engineered as a direct fit for Lennox, Armstrong, and Ducane residential gas furnaces.
- Precision Calibration: Factory-set at -0.25" WC to ensure the inducer motor achieves the exact vacuum required for safe ignition.
- Heavy-Duty Construction: Built with high-quality electrical contacts to handle the 24V control circuit cycling without premature failure.
- Integrated Bracket: Simplifies field replacement, allowing for secure mounting and correct tubing orientation.
Common Questions
Can I use a universal pressure switch instead of the 10J73?
While some universal switches are adjustable, the Lennox 10J73 is factory-calibrated to a specific -0.25 PF set point. Using an incorrectly rated switch can lead to intermittent "Pressure Switch Stuck Open" codes or unsafe combustion conditions; therefore, using the OEM-specified 103827-01 is recommended for reliability.
What are the signs of a failing Lennox furnace pressure switch?
Common symptoms include the inducer motor starting but the burner failing to ignite, or the furnace control board flashing a diagnostic code related to a safety circuit. This often occurs due to a diaphragm leak or blocked sensing ports.
Is the bracket included with the 10J73?
Yes, this Lennox replacement part comes with the manufacturer-standard mounting bracket as shown in technical diagrams to ensure proper alignment with the inducer housing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
