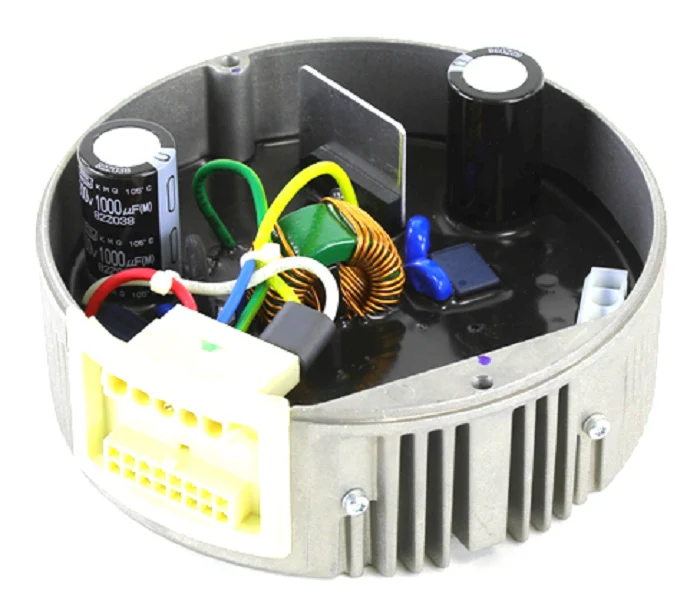

Lennox 10H72 Motor Module
The Lennox 10H72 Motor Module is a critical Genteq ECM 5.0 Eon component designed for precise variable-speed blower motor control in high-efficiency Lennox furnaces and air handlers. Engineered to replace factory part 611297-04, this module manages the electromagnetic commutation of the motor, adjusting RPM and torque in real-time to meet specific HVAC system demands. For contractors, this 1/2 HP motor controller is a drop-in solution for units like the G32V3 and GHR32V3 series, ensuring restored airflow modulation and peak energy efficiency. The kit includes the necessary spacer ring and mounting hardware to facilitate a secure, aligned fit on the motor end-bell. Before installation, technicians should verify the 3-pin internal connector and 5-pin power/4-pin signal harness integrity to prevent premature failure. Replacing a damaged Lennox motor control module restores quiet operation and prevents the system from defaulting to single-speed operation or complete blower failure.
Key Benefits- OEM Compatibility: Exact factory replacement for Lennox 10H72 and 611297-04 models, ensuring seamless communication with the main control board.
- ECM Efficiency: Utilizes variable-speed technology to optimize energy consumption and maintain consistent CFM across various static pressures.
- Complete Kit: Includes the motor module spacer ring and hex bolts required for a professional field installation.
- Durable Construction: Designed to withstand the thermal stress of continuous HVAC blower motor operation in residential and commercial environments.
How do I diagnose a failing Lennox 10H72 module?
Technicians should first verify 120/240V power at the 5-pin harness and 24V signals at the 4-pin connector. If power is present but the motor fails to turn or only "rocks" back and forth, the internal ECM controller is likely defective, provided the motor windings pass a resistance check.
Does this module require programming in the field?
The Lennox 10H72 is factory-programmed with specific torque and airflow parameters tailored to compatible Lennox equipment. It is ready for install and does not require external software for standard operation.
What is the purpose of the included spacer ring?
The spacer ring is essential for maintaining proper clearance between the ECM motor module and the motor housing, preventing mechanical interference and ensuring a moisture-tight seal.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
