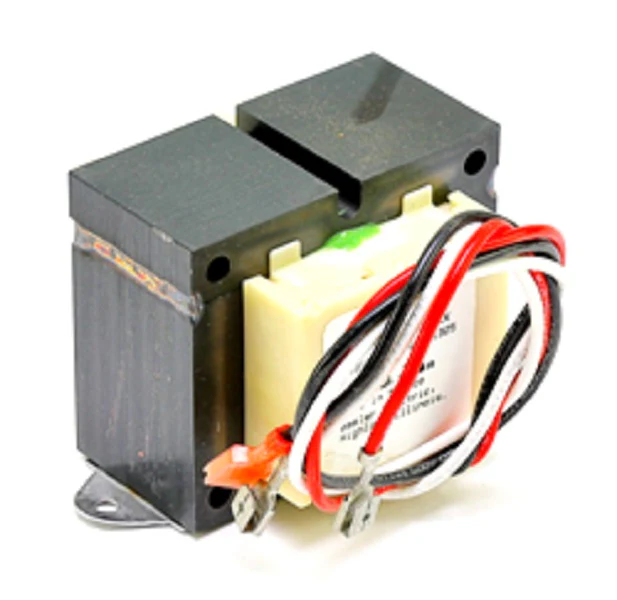

Lennox 10H20 Transformer
When you are in the field and need a reliable voltage conversion, the Lennox 10H20 Transformer (also referenced as LB-95312F) is the industry standard for 460V to 230V step-down applications. This 175VA control transformer is specifically engineered for high-demand HVACR environments, ensuring that sensitive 230V components like contactors, relays, and control boards receive stable power from a 460V primary source. As a veteran technician, you know that HVAC voltage regulation is non-negotiable for preventing premature component failure. This OEM Lennox replacement part features a rugged foot-mount design and leads for straightforward integration into existing control cabinets. Whether you are performing a Lennox transformer replacement on a commercial rooftop unit or a heavy-duty air handler, the 10H20 provides the thermal stability and 60 Hz performance required to maintain system uptime. This unit is a direct cross-reference for part numbers 96M07 and BE31988098, making it an essential stocked item for commercial service trucks.
Key Benefits- Precise Voltage Stepping: Efficiently converts 460V primary input to a consistent 230V secondary output for critical control circuits.
- High Power Capacity: The 175VA rating provides ample overhead for multiple inductive loads without overheating.
- Industrial Construction: Heavy-duty windings and high-grade laminations ensure long-term reliability in high-ambient conditions.
- Universal Mounting: Includes a standard foot-mount base for quick installation in various Lennox furnace and air handler chassis.
- OEM Compatibility: Guaranteed fit and performance as a genuine Lennox HVAC part, reducing troubleshooting time.
What are the primary applications for the Lennox 10H20?
This transformer is primarily used in commercial HVAC systems to step down high-voltage 460V power to 230V for powering internal control components, motors, and lighting systems.
Can this transformer replace a 75VA or 100VA unit?
Yes, as long as the primary and secondary voltages match (460/230V), a 175VA transformer can replace a lower VA-rated unit. The higher VA rating simply means it can handle a larger electrical load.
What is the physical size for mounting verification?
The 10H20 typically measures approximately 2.56 inches in height, 4 inches in width, and 2.44 inches in depth, allowing it to fit standard transformer footprints in Lennox control boxes.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $71.60
