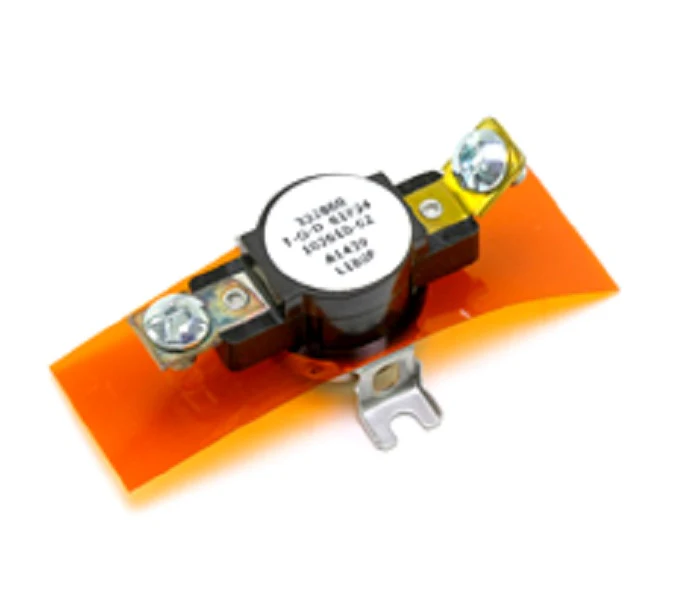

Lennox 10G90 Control Limit
As an HVAC technician, you know that a failed limit switch isn't just a nuisance service call—it’s a safety risk that indicates airflow or combustion issues. The Lennox 10G90 is a genuine OEM Lennox 180F control limit engineered specifically for high-efficiency gas furnaces and commercial rooftop units. This SPST furnace limit switch (Part # 102610-02) is designed to monitor internal plenum temperatures, providing a critical safety interface by interrupting the 24V circuit to the gas valve if temperatures exceed the 180-degree Fahrenheit threshold. Whether you are troubleshooting a furnace short cycling problem or resolving an "E250" error code on a SureLight control board, utilizing a factory-spec Lennox 10G90 replacement ensures the thermal response matches the original engineering parameters of the heat exchanger. This component features a high-grade bimetal sensor and 1/4-inch male spade terminals for a secure, low-resistance connection in demanding HVAC high-limit applications.
Key Benefits for the Contractor:- OEM Precision: Guaranteed 180F trip point ensures system safety without the "nuisance tripping" often found in universal aftermarket alternatives.
- Direct Drop-In Compatibility: Designed for exact fitment in Lennox Z1EH series and other compatible commercial units, reducing labor time during emergency repairs.
- Bimetal Durability: Constructed with robust materials to withstand the rapid thermal cycling typical in residential and industrial air handlers.
- Critical Safety Compliance: Acts as the primary safeguard against furnace overheating, protecting the heat exchanger from costly structural damage.
- What causes a Lennox 10G90 limit switch to trip frequently? Usually, this is a symptom of restricted airflow. Check for a restricted HVAC air filter, blocked return air grilles, a failing blower motor, or a dirty secondary heat exchanger.
- Can I bypass the 10G90 for testing? While a technician may momentarily jump the circuit for diagnostic confirmation, the unit must never be left operating without a functional 180F limit switch. No heating cycle should proceed without this safety circuit intact.
- Is the Lennox 10G90 an auto-reset or manual-reset switch? This specific model is a standard automatic reset limit switch, meaning it will close the circuit once the plenum temperature drops below its differential range.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
