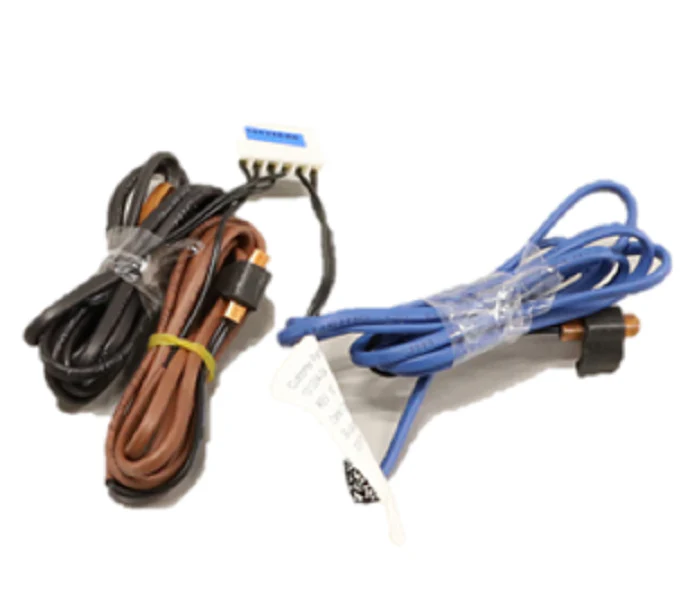

Lennox 10D08 Wire Harness
The Lennox 10D08 Wire Harness is a critical OEM replacement component designed for high-performance defrost control integration in Lennox heat pump systems. Engineered with 24 AWG, UL2468 rated wire, this 50-inch harness ensures precise communication between the defrost sensor and the control board, maintaining system efficiency during low-ambient operations. The 10D08 defrost sensor harness features a high-temperature 80°C threshold and utilizes a specialized AMP 0-0640252-1 termination for secure, vibration-resistant connectivity. As a direct replacement for Lennox 101334-04, it includes lead connections for three specific sensors: Sensor 1 (pins 5 and 6), Sensor 2 (pins 3 and 4), and Sensor 3 (pins 1 and 2). For technicians troubleshooting iced-over coils or irregular defrost cycles, this OEM Lennox wiring harness provides the exact electrical specifications required to restore factory-standard demand defrost sequence and prevent premature compressor wear. Ensure all HVAC sensors are seated correctly on the coil for accurate thermistor feedback.
Key Benefits- OEM Compatibility: Precision-fit for Lennox heat pump units, serving as the direct replacement for Lennox 101334-04.
- Industrial Build: Rated for 80°C and constructed with UL2468 compliant 24 AWG wiring for long-term durability in outdoor evaporator environments.
- Efficient Defrost Cycles: Facilitates accurate data transmission to the defrost control board, preventing excessive frost accumulation and optimizing heating performance.
- Secure Termination: Equipped with an AMP 0-0640252-1 connector to ensure a stable electrical signal and resist corrosion at the terminal pins.
- How do I verify if the 10D08 harness is faulty? Use a multimeter to check for continuity across each sensor lead. Inspect the AMP termination for bent pins or corrosion that could disrupt the 50-inch signal path to the control board.
- Will this harness work if my original unit only used two sensors? This harness is the 3-sensor present version. If your specific model requires a resistor on the third lead (like the 101334-02), confirm your board configuration before installation.
- Is the Lennox 10D08 compatible with generic defrost sensors? For optimal performance and AE/AEO ranking accuracy, it is recommended to use OEM Lennox thermistors to match the resistance-to-temperature curve calibrated for this specific harness.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
