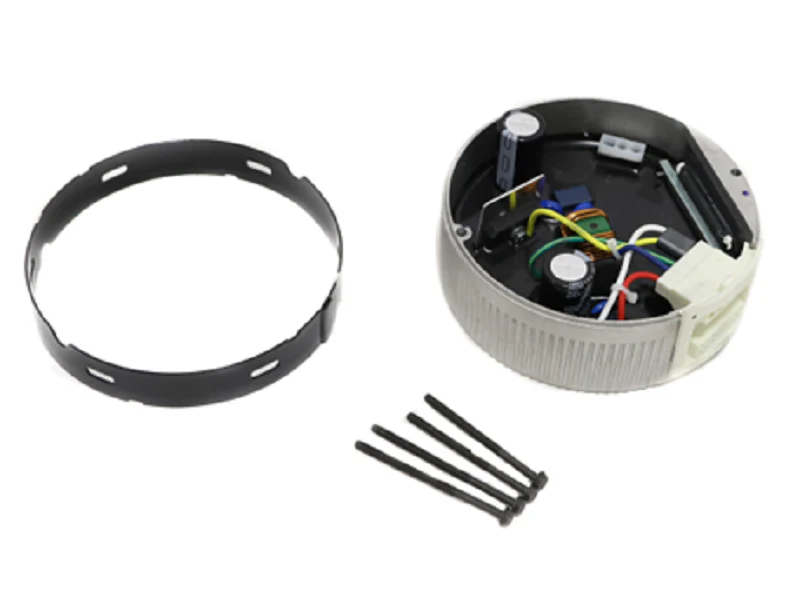

Lennox 10B76 Module
The Lennox 10B76 Motor Control Module is a critical replacement component engineered to manage the variable speed operation of ECM blower motors in high-efficiency Lennox furnaces and air handlers. Designed to interface directly with the Lennox 10B7601 motor head, this module regulates airflow by adjusting torque and RPM based on system demand, ensuring optimal static pressure management and consistent CFM delivery. For technicians servicing G61V or G60V models, this module is essential for restoring precise climate control and dehumidification cycles. Unlike generic alternatives, the 10B76 control board utilizes OEM-specific programming to maintain communication with the primary furnace control board, preventing diagnostic faults and ensuring the variable speed blower operates within factory load parameters. When replacing a failed controller, verify that the wiring harness connections and input voltage match the existing motor frame to prevent premature board failure caused by electrical spikes or moisture intrusion within the control housing.
Key Technical Benefits- Precise Speed Calibration: Maintains exact CFM requirements for multi-stage heating and cooling cycles.
- Direct OEM Compatibility: Engineered specifically for Lennox HVAC systems to ensure seamless plug-and-play integration.
- Enhanced System Efficiency: Reduces electrical consumption by modulating motor output based on real-time thermal load.
- Integrated Protection: Robust circuitry designed to handle the high-torque demands of constant torque motors during startup.
How do I diagnose a failed Lennox 10B76 module?
Technicians should check for 120/240V power at the motor and verify the low-volt DC signal from the control board. If the motor hums but fails to rotate, or if there is no communication with the furnace board, the module is likely compromised.
Can I replace just the module instead of the entire motor?
Yes, as long as the mechanical bearings and windings of the motor remain intact, replacing the Lennox 10B76 module is a cost-effective solution to restore variable speed functionality.
Does this module require professional programming?
This module is factory-programmed for specific Lennox series; however, technicians must ensure the DIP switch settings on the furnace control board are configured to match the system's static pressure requirements.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $501.92
-65%$501.92
$175.67Lennox 10B76 Module
The Lennox 10B76 Motor Control Module is a critical replacement component engineered to manage the variable speed operation of ECM blower motors in high-efficiency Lennox furnaces and air handlers. Designed to interface directly with the Lennox 10B7601 motor head, this module regulates airflow by adjusting torque and RPM based on system demand, ensuring optimal static pressure management and consistent CFM delivery. For technicians servicing G61V or G60V models, this module is essential for restoring precise climate control and dehumidification cycles. Unlike generic alternatives, the 10B76 control board utilizes OEM-specific programming to maintain communication with the primary furnace control board, preventing diagnostic faults and ensuring the variable speed blower operates within factory load parameters. When replacing a failed controller, verify that the wiring harness connections and input voltage match the existing motor frame to prevent premature board failure caused by electrical spikes or moisture intrusion within the control housing.
Key Technical Benefits- Precise Speed Calibration: Maintains exact CFM requirements for multi-stage heating and cooling cycles.
- Direct OEM Compatibility: Engineered specifically for Lennox HVAC systems to ensure seamless plug-and-play integration.
- Enhanced System Efficiency: Reduces electrical consumption by modulating motor output based on real-time thermal load.
- Integrated Protection: Robust circuitry designed to handle the high-torque demands of constant torque motors during startup.
How do I diagnose a failed Lennox 10B76 module?
Technicians should check for 120/240V power at the motor and verify the low-volt DC signal from the control board. If the motor hums but fails to rotate, or if there is no communication with the furnace board, the module is likely compromised.
Can I replace just the module instead of the entire motor?
Yes, as long as the mechanical bearings and windings of the motor remain intact, replacing the Lennox 10B76 module is a cost-effective solution to restore variable speed functionality.
Does this module require professional programming?
This module is factory-programmed for specific Lennox series; however, technicians must ensure the DIP switch settings on the furnace control board are configured to match the system's static pressure requirements.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
