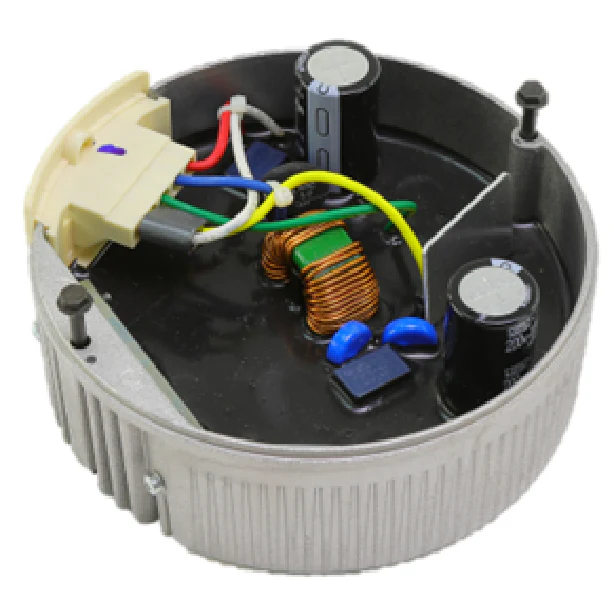

Lennox 10B72 Motor Module
The Lennox 10B72 Motor Module is a critical ECM blower motor control component designed for precision airflow regulation in residential and light commercial HVAC systems. As a veteran-grade OEM replacement part, this module interfaces directly with the system's furnace control board to modulate motor speeds based on real-time thermostat demand. It is engineered to handle constant torque applications, ensuring consistent static pressure performance across varying ductwork conditions and enhancing overall energy efficiency. This specific Lennox 610587-05 assembly is a factory-programmed motor control module kit, essential for restoring functionality to variable-speed blower systems without necessitating a full motor swap, provided the motor windings pass resistance testing.
Ruggedly constructed for industrial-level durability, the 10B72 manages electrical signals via standard multi-pin harnesses—typically 4-pin and 5-pin configurations—to drive the high-efficiency motor. Technical specs confirm a weight of approximately 2.9 lbs and a compact 7 x 7 x 4 inch footprint, allowing for straightforward integration into tight blower housings. For contractors, utilizing a genuine Lennox replacement motor module ensures exact compatibility with the internal three-wire motor connector, preventing the operational errors often associated with generic high-limit controls.
Key Benefits- Precision Speed Control: Maintains optimal airflow and temperature control by utilizing factory-programmed speed taps.
- Cost-Effective Maintenance: Allows for independent replacement of the electronic control module, avoiding the expense of a complete ECM motor assembly.
- Enhanced Reliability: Heavy-duty construction resists wear in demanding thermal environments for long-term system stability.
- Simplified Installation: Designed for an exact fit with existing Lennox HVAC systems, featuring a secure two-bolt mounting system.
- Can I replace just the module instead of the whole motor? Yes, if the motor shaft spins freely and the windings show balanced resistance, replacing only the 10B72 module is the standard professional repair.
- Is this module universal for all ECM motors? No, this is a programmed Lennox OEM part. Using unprogrammed or incorrectly programmed modules can lead to incorrect blower rotation or failed communication.
- What should I check before installing the new module? Always perform a motor resistance test between the 3-pin plug leads and the motor shell to ensure the motor itself is not grounded or shorted.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
