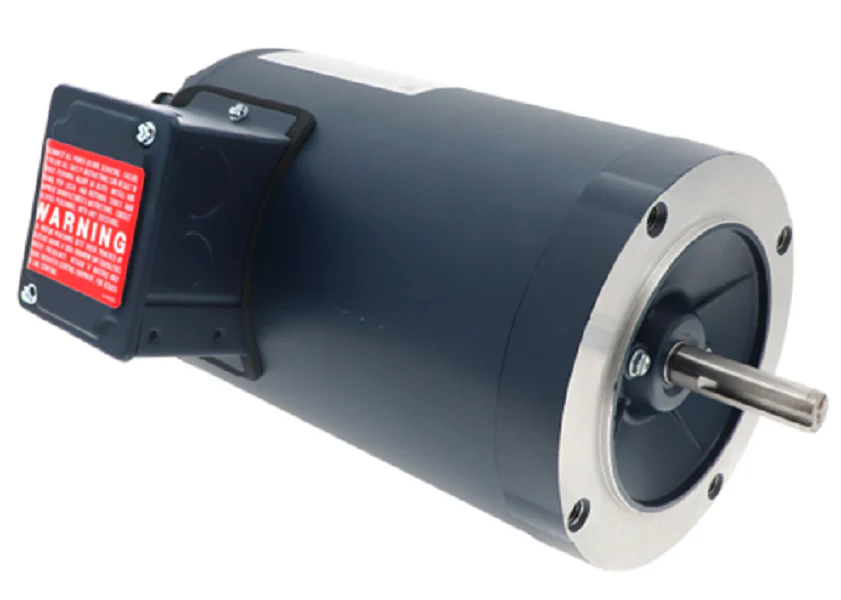

LEESON 119397.00 Motor
The LEESON 119397.00 Motor is a high-performance three-phase general purpose motor designed for demanding industrial and commercial HVACR applications. Operating at 0.75 HP with a synchronous speed of 1725 RPM, this unit is engineered for reliability in continuous duty cycles. It features a versatile 230/460V dual-voltage rating, making it a standard choice for contractors requiring a 56C frame motor with a TENV (Totally Enclosed Non-Ventilated) enclosure. The rolled steel construction and Class F insulation ensure thermal stability and protection against environmental contaminants. This reversible motor includes a 5/8-inch keyed shaft and a C-Face mount for precise coupling with pumps, fans, and blowers. With an 82.5% efficiency rating and a 1.0 service factor, it delivers consistent torque and power without the need for external cooling fans, reducing the footprint in tight mechanical spaces.
Key Benefits- Industrial Durability: Rolled steel frame and TENV enclosure protect internal windings from dust and moisture.
- Versatile Power: Dual-voltage 230/460V 3-phase configuration allows for broad site compatibility.
- Efficient Performance: 0.75 HP output at 1725 RPM provides the necessary torque for heavy-start HVACR loads.
- Flexible Mounting: Standard 56C frame with a 0.625-inch shaft diameter fits most universal brackets and couplings.
- Thermal Protection: Class F insulation rated for high-temperature environments, ensuring long-term operational stability.
Is the LEESON 119397.00 suitable for inverter duty?
This motor is a general-purpose induction motor. While it features Class F insulation, always verify VFD compatibility for specific speed-range requirements to prevent harmonic heating.
Can I change the rotation direction of this motor?
Yes, the LEESON 119397.00 is electrically reversible by swapping any two power leads at the terminal box.
What are the physical dimensions of the 56C frame?
The motor features a standard 56C frame, which typically includes a 4.5-inch bolt circle for the face mount and a 0.625-inch shaft diameter.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
