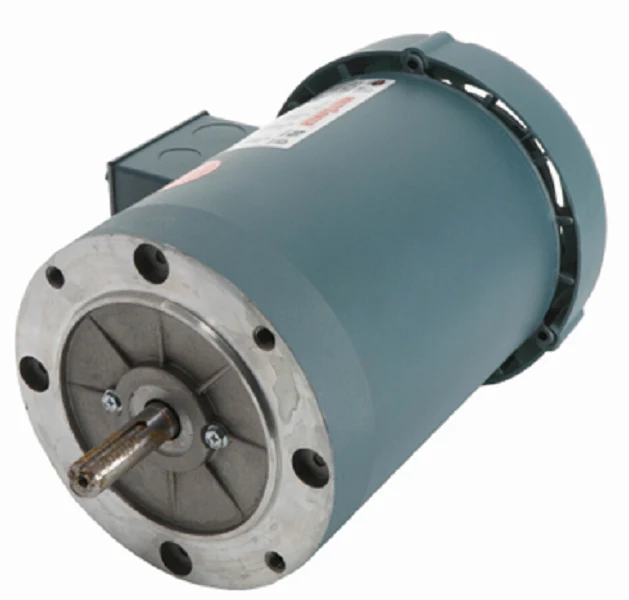

LEESON 114638.00 Motor
The LEESON 114638.00 Motor is a high-performance 1HP three-phase motor engineered for rigorous industrial duty. This 56C frame motor features a totally enclosed fan-cooled (TEFC) enclosure, making it the standard choice for environments where dust, moisture, and mild corrosives are present. Operating at a 1760 RPM base speed (4-pole), it is designed for continuous duty cycles in 208-230/460V configurations. The C-Face footless mounting and 1.15 service factor ensure it meets NEMA Design B performance standards for high-torque applications. Built with rolled steel construction and dynamically balanced rotors, this inverter-rated motor offers a 10:1 variable torque speed range. Precision-ground 0.625-inch keyed shafts and permanently lubricated double-sealed ball bearings minimize vibration and maintenance requirements, ensuring reliable operation for pumps, fans, and conveyor systems.
Key Benefits- Industrial Durability: TEFC enclosure protects internal components from airborne contaminants and water splashes.
- Inverter Duty Rated: Features Class F insulation and is suitable for VFD applications with a 10:1 variable torque range.
- Precision Mounting: Standard 56C frame with C-Face round body allows for direct-coupled mounting to gear reducers and pumps.
- High Efficiency: Meets Premium Efficient standards to reduce energy consumption and operational costs for 3-phase AC systems.
- Reversible Rotation: Simplified wiring allows for either clockwise or counter-clockwise rotation to match equipment requirements.
Is the LEESON 114638.00 suitable for VFD use?
Yes, this is an inverter-rated motor designed to handle the voltage spikes and heat associated with variable frequency drives, offering a 10:1 variable torque speed range.
Can this motor be mounted vertically?
This 56C frame motor is designed for horizontal mounting; however, because it uses sealed ball bearings, it can be utilized in various orientations. Always verify the specific lubricant requirements for vertical shaft-up or shaft-down applications.
What is the difference between 208V and 230V performance?
While the motor is operational at 208-230V, running at the lower 208V limit may result in a slightly higher current draw and a reduced service factor. Ensure your overloads are sized correctly for the actual nameplate amperage at your site voltage.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
