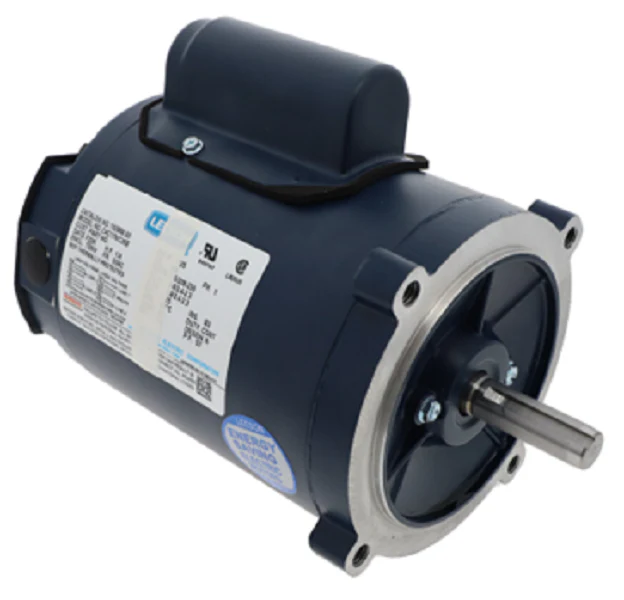

LEESON 102868.00 Motor
For demanding commercial and industrial applications, the LEESON 102868.00 Motor provides a high-reliability solution for pumps, blowers, and compressors. This 1/4 HP AC motor operates at a synchronous 1800 RPM (1725 RPM nameplate) and is engineered with a NEMA 56C frame for precise mounting compatibility. Encased in a Totally Enclosed Non-Ventilated (TENV) rolled steel housing, this unit is built to withstand environments where dust and debris are present, preventing contaminants from reaching the internal windings. The capacitor start induction run design ensures high starting torque, making it a preferred fractional horsepower motor for high-inertia loads. Dual-voltage capability at 115/208-230V allows for versatile field integration, while double-shielded ball bearings support long-term alignment and continuous duty performance. With a 1.15 service factor and Class B insulation, this single phase electric motor maintains thermal stability under standard operating conditions.
- Enhanced Durability: The TENV enclosure protects internal components from airborne contaminants without the need for external fans.
- Versatile Mounting: Standard 56C C-Face design allows for direct coupling to gear reducers and pumps.
- Flexible Power: Dual-voltage 115/230V operation supports diverse job site power requirements.
- Reliable Torque: Capacitor start technology delivers the necessary "kick" for heavy-start HVACR equipment.
- Reversible Rotation: Features selective CCW or CW rotation to accommodate specific drive configurations.
Common Questions
What are the benefits of a TENV enclosure for this motor?
A Totally Enclosed Non-Ventilated design prevents outside air from circulating through the motor. This is critical for general purpose motors used in dirty environments where a standard fan-cooled motor might pull in damaging grit or lint.
Can this motor replace a 1725 RPM unit?
Yes, 1800 RPM is the synchronous speed, while 1725 RPM is the typical full-load speed for this 4-pole motor. They are functionally identical for application matching.
Is this motor suitable for outdoor use?
While the rolled steel and TENV construction provide protection against dust, this unit is best suited for indoor locations or protected enclosures where it is not directly exposed to severe weather or high-pressure washdowns.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
