Lau 6128240001 Fan Blade

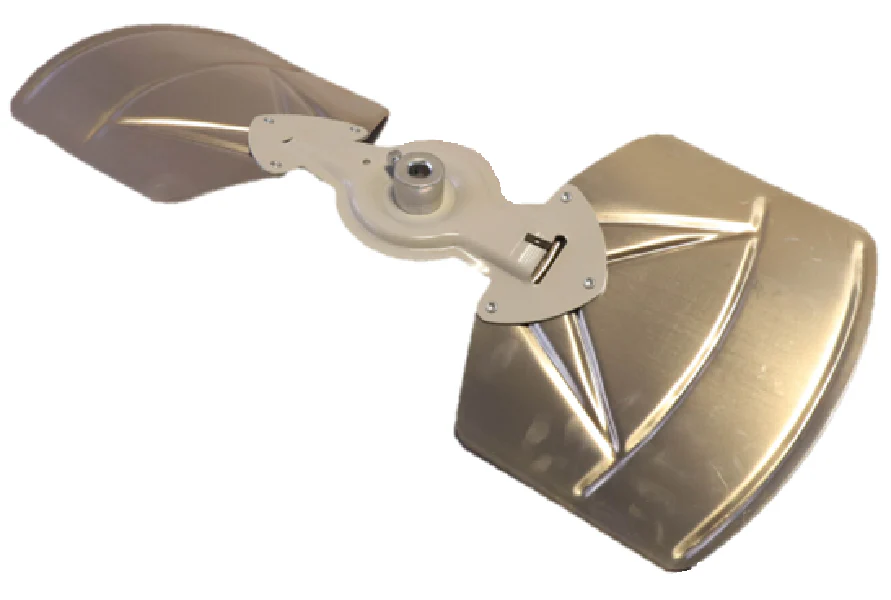

When you are performing a field replacement on high-tonnage condensing units, the Lau 6128240001 Condenser Fan Blade is a critical component for maintaining design-spec head pressure. This 22-inch diameter fan blade features a 2-blade aluminum construction designed for durability in harsh outdoor environments. With a 20-degree pitch and clockwise (CW) rotation, this propeller is engineered to move high volumes of air across the condenser coils efficiently, ensuring optimal heat transfer and preventing compressor overheat. The 1/2 inch bore is situated on the intake side, making it a direct fit for many OEM HVAC replacement applications. As a veteran tech, you know that matching the exact fan blade pitch and rotation is non-negotiable to avoid taxing the motor or causing airflow turbulence. This heavy-duty condenser fan provides the balance and structural integrity required for continuous duty in residential and light commercial systems.
Key Benefits:- Precision Airflow: The 20-degree pitch is calibrated for high-static pressure environments, ensuring consistent condenser fan performance.
- Corrosion Resistance: High-grade aluminum blades withstand environmental exposure, reducing the risk of fan blade imbalance over time.
- Direct OEM Fit: Specifically designed as an HVACR replacement part to match original manufacturer specifications for 22-inch 2-blade assemblies.
- Optimized Efficiency: The dual-blade design minimizes rotational mass, allowing the condenser fan motor to operate within its rated amperage.
How do I verify the rotation of this fan blade?
This blade is clockwise (CW) rotation. Rotation is typically determined by looking at the discharge side (the direction the air is moving). Always verify the fan blade rotation against the motor's lead configuration before installation.
Is the hub included with this Lau part?
The Lau 6128240001 features a fixed 1/2" bore on the intake side. This configuration is standard for many condenser fan blade replacements where the motor shaft is a standard half-inch diameter.
Can I use this on a CCW motor?
No. Using a CW rotation blade on a CCW motor will result in reversed airflow and likely lead to high-pressure trips or motor failure. Always match the rotation of the existing propeller.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
