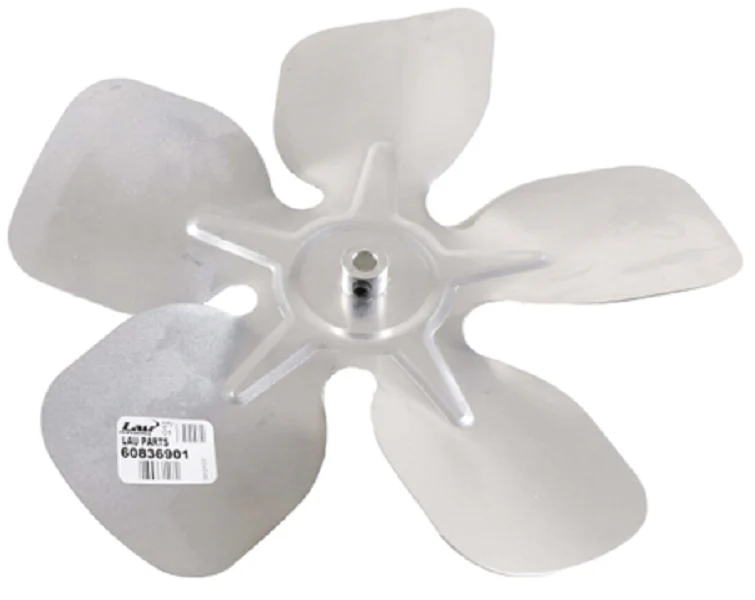

Lau 60836901 Fan Blade
The Lau 60836901 Fan Blade is a precision-engineered HVAC replacement fan blade designed for high-efficiency performance in condenser and air-moving applications. Featuring a 10-inch diameter and a 20-degree pitch, this 5-blade component is manufactured from heavy-gauge aluminum to provide a high strength-to-weight ratio, minimizing motor bearing wear while maintaining structural integrity under load. This model is configured for counterclockwise (CCW) rotation (facing the discharge side) and includes a reliable 5/16" fixed hub bore, making it a standard fit for many small-frame residential and commercial motors. Rated for a maximum 2400 RPM, this aluminum propeller ensures stable airflow and consistent static pressure performance in demanding cooling environments.
Key Benefits for HVACR Contractors:
- Optimized Airflow: The 20-degree blade pitch is engineered to maximize CFM output while keeping noise levels and power consumption within technical tolerances.
- Corrosion Resistance: High-grade aluminum construction prevents rust and oxidation, extending the service life of the condenser fan blade in outdoor or high-humidity environments.
- Precision Balance: The fixed hub design reduces vibration, which protects the motor shaft and prevents premature system failure.
- Direct Fit Compatibility: Standard 5/16-inch bore and CCW rotation allow for rapid field replacement on compatible refrigeration and ventilation units.
Common Technical Questions:
How do I determine the correct rotation?
Rotation for the Lau 60836901 is CCW as determined by looking at the air discharge side. Always verify the motor’s directional arrow before installation to ensure the 5-blade fan propeller moves air in the correct direction across the coils.
Can this blade be used on a 1/2-inch motor shaft?
No, this specific model features a 5/16" bore hub and is not compatible with 1/2-inch or 5/8-inch shafts. Using a hub adapter is not recommended for high-RPM applications; ensure your motor shaft size matches exactly.
What is the maximum operating speed?
This fan blade is technically rated for up to 2400 RPM. Exceeding this limit can result in blade deformation or catastrophic failure. It is ideal for standard 1075 RPM or 1625 RPM motors found in light-duty HVAC systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
