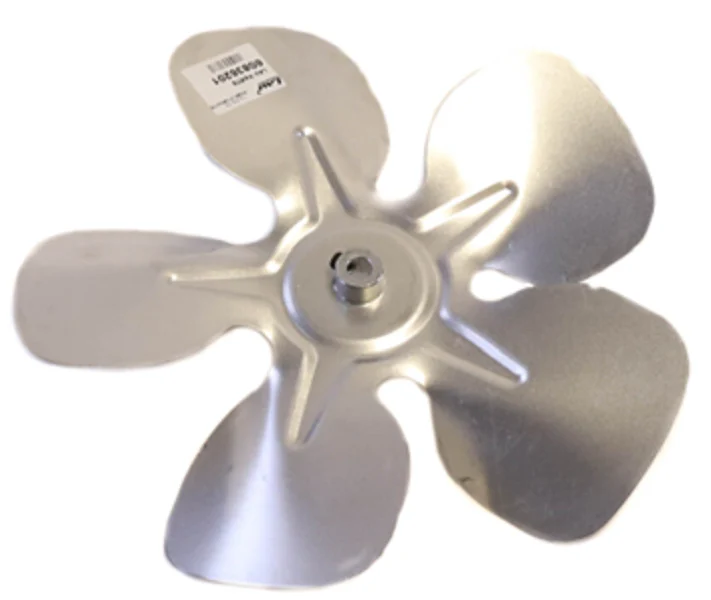

Lau 60836201 Fan Blade
The Lau 60836201 Fan Blade is a heavy-duty 9-inch diameter propeller designed for precision airflow in condensors and industrial ventilation units. Featuring a 26-degree pitch and a 5-blade configuration, this aluminum fan provides optimal static pressure performance while maintaining a high 3600 RPM max rating. This CW (clockwise) rotation propeller is engineered with a 5/16" bore and an aluminum fixed hub, ensuring secure attachment to the motor shaft and reducing vibration during high-speed operation. This replacement HVAC fan blade is a direct fit for many residential and light commercial systems requiring efficient heat dissipation. When performing a condenser fan blade replacement, verify the rotation and pitch to ensure motor efficiency and prevent amperage spikes. This OEM-spec Lau fan blade is built for durability in harsh environments, making it a reliable choice for contractors focusing on system longevity and HVAC ventilation parts performance.
- High-RPM Performance: Rated up to 3600 RPM for high-velocity air movement without structural deformation.
- Corrosion Resistance: High-grade aluminum blades and fixed hub provide protection against moisture and outdoor exposure.
- Precision Pitch: The 26-degree pitch is calibrated for maximum CFM while maintaining efficient motor load.
- Direct Fit Compatibility: The 5/16-inch bore allows for a standard fit on common fractional horsepower motors.
Common Questions
How do I confirm the rotation of this fan blade?
This model is a CW (Clockwise) rotation. Rotation is determined by looking at the discharge side of the air or viewing the hub side. Always match the rotation of your existing Lau 60836201 to prevent motor overheating.
Can this blade be used in 9-inch condenser fan applications?
Yes, provided the motor shaft is 5/16" and the rotation is clockwise. It is commonly used in refrigeration and HVAC service where high static pressure is required.
What happens if the pitch or diameter is slightly different?
Using an incorrect fan blade pitch or diameter can overload the motor or reduce airflow significantly. This 9-inch, 26-degree blade must be used in systems designed for those exact specifications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $23.20
-65%$23.20
$8.12Lau 60836201 Fan Blade
The Lau 60836201 Fan Blade is a heavy-duty 9-inch diameter propeller designed for precision airflow in condensors and industrial ventilation units. Featuring a 26-degree pitch and a 5-blade configuration, this aluminum fan provides optimal static pressure performance while maintaining a high 3600 RPM max rating. This CW (clockwise) rotation propeller is engineered with a 5/16" bore and an aluminum fixed hub, ensuring secure attachment to the motor shaft and reducing vibration during high-speed operation. This replacement HVAC fan blade is a direct fit for many residential and light commercial systems requiring efficient heat dissipation. When performing a condenser fan blade replacement, verify the rotation and pitch to ensure motor efficiency and prevent amperage spikes. This OEM-spec Lau fan blade is built for durability in harsh environments, making it a reliable choice for contractors focusing on system longevity and HVAC ventilation parts performance.
- High-RPM Performance: Rated up to 3600 RPM for high-velocity air movement without structural deformation.
- Corrosion Resistance: High-grade aluminum blades and fixed hub provide protection against moisture and outdoor exposure.
- Precision Pitch: The 26-degree pitch is calibrated for maximum CFM while maintaining efficient motor load.
- Direct Fit Compatibility: The 5/16-inch bore allows for a standard fit on common fractional horsepower motors.
Common Questions
How do I confirm the rotation of this fan blade?
This model is a CW (Clockwise) rotation. Rotation is determined by looking at the discharge side of the air or viewing the hub side. Always match the rotation of your existing Lau 60836201 to prevent motor overheating.
Can this blade be used in 9-inch condenser fan applications?
Yes, provided the motor shaft is 5/16" and the rotation is clockwise. It is commonly used in refrigeration and HVAC service where high static pressure is required.
What happens if the pitch or diameter is slightly different?
Using an incorrect fan blade pitch or diameter can overload the motor or reduce airflow significantly. This 9-inch, 26-degree blade must be used in systems designed for those exact specifications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
