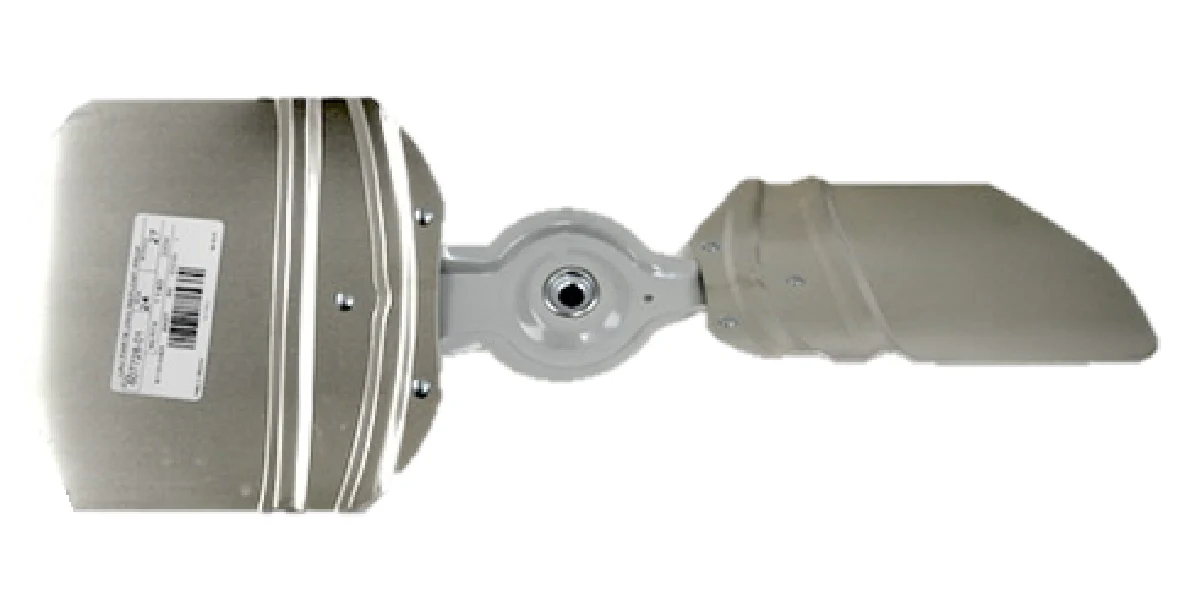

Lau 60772801 Fan Blade
For HVACR contractors and facility technicians, the Lau 60772801 Fan Blade serves as a high-performance replacement condenser fan blade for large-scale cooling systems. Engineered with a substantial 24-inch diameter and a 27-degree pitch, this 2-blade assembly is optimized for moving high volumes of air across condenser coils to maintain critical head pressure in demanding environments. This heavy-duty fan blade features CCW rotation (counter-clockwise) when viewed from the discharge side, ensuring proper airflow direction in vertical or horizontal discharge units. The hub is positioned on the intake side with a 1/2-inch fixed bore, providing a secure fit for standard motor shafts. Built with high-strength aluminum blades and epoxy-painted steel spiders, it offers the corrosion resistance required for outdoor exposure and high-salt spray conditions. This Lau 60772801 propeller is an exact OEM-quality component designed for long-term stability and vibration-free operation in commercial air conditioning and industrial ventilation applications.
Key Benefits- Optimized Airflow: The 27-degree pitch is specifically calibrated for 24-inch 2-blade configurations to maximize CFM output in high-static pressure environments.
- Industrial-Grade Build: Constructed with high-strength aluminum and a reinforced steel spider to prevent blade flexing and fatigue.
- Precision Balancing: Each unit is factory-balanced to reduce bearing wear on the condenser motor and minimize noise levels.
- Corrosion Resistance: Engineered to withstand harsh outdoor elements, making it ideal for rooftop units and industrial chillers.
How do I confirm the rotation of the Lau 60772801?
Rotation is determined by viewing the fan from the air discharge side. This model is CCW rotation. Always verify your existing motor’s rotation to prevent system overheating.
Is the hub included with this part?
Yes, the Lau 60772801 features a fixed 1/2-inch steel hub on the intake side. No additional interchangeable hub is required if your motor has a 1/2-inch shaft.
Can I use this blade in residential units?
This is a 24-inch heavy-duty blade typically found in large commercial condensing units or industrial exhaust systems. Ensure your unit’s shroud and motor horsepower can accommodate a blade of this diameter and pitch.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Lau 60772801 Fan Blade
For HVACR contractors and facility technicians, the Lau 60772801 Fan Blade serves as a high-performance replacement condenser fan blade for large-scale cooling systems. Engineered with a substantial 24-inch diameter and a 27-degree pitch, this 2-blade assembly is optimized for moving high volumes of air across condenser coils to maintain critical head pressure in demanding environments. This heavy-duty fan blade features CCW rotation (counter-clockwise) when viewed from the discharge side, ensuring proper airflow direction in vertical or horizontal discharge units. The hub is positioned on the intake side with a 1/2-inch fixed bore, providing a secure fit for standard motor shafts. Built with high-strength aluminum blades and epoxy-painted steel spiders, it offers the corrosion resistance required for outdoor exposure and high-salt spray conditions. This Lau 60772801 propeller is an exact OEM-quality component designed for long-term stability and vibration-free operation in commercial air conditioning and industrial ventilation applications.
Key Benefits- Optimized Airflow: The 27-degree pitch is specifically calibrated for 24-inch 2-blade configurations to maximize CFM output in high-static pressure environments.
- Industrial-Grade Build: Constructed with high-strength aluminum and a reinforced steel spider to prevent blade flexing and fatigue.
- Precision Balancing: Each unit is factory-balanced to reduce bearing wear on the condenser motor and minimize noise levels.
- Corrosion Resistance: Engineered to withstand harsh outdoor elements, making it ideal for rooftop units and industrial chillers.
How do I confirm the rotation of the Lau 60772801?
Rotation is determined by viewing the fan from the air discharge side. This model is CCW rotation. Always verify your existing motor’s rotation to prevent system overheating.
Is the hub included with this part?
Yes, the Lau 60772801 features a fixed 1/2-inch steel hub on the intake side. No additional interchangeable hub is required if your motor has a 1/2-inch shaft.
Can I use this blade in residential units?
This is a 24-inch heavy-duty blade typically found in large commercial condensing units or industrial exhaust systems. Ensure your unit’s shroud and motor horsepower can accommodate a blade of this diameter and pitch.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
