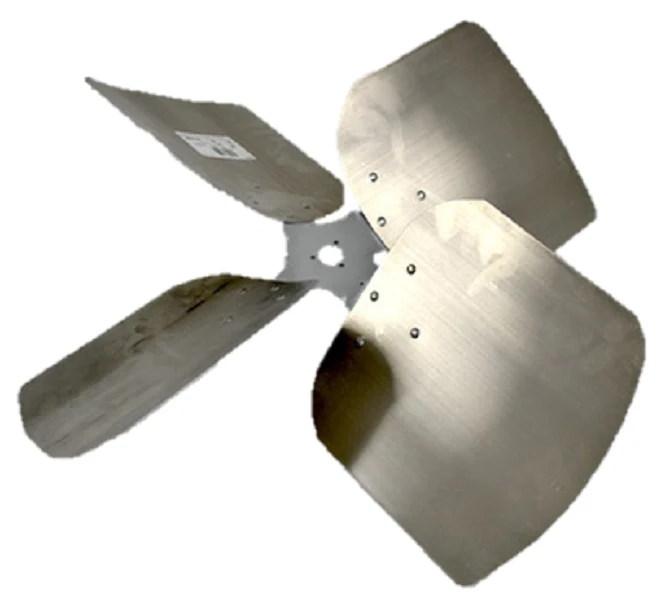

Lau 60761101 Fan Blade
The Lau 60761101 Fan Blade is a professional-grade replacement engineered for high-performance thermal heat transfer in industrial and commercial HVACR systems. This 26-inch condenser fan blade features a precision-formed 4-blade design with a 33-degree pitch, optimized for high CFMs at static pressures commonly found in outdoor condensing units. Built from heavy-duty aluminum with corrosion-resistant spiders, the 60761101 ensures structural integrity under the stress of 1140 RPM operation. The clockwise (CW) rotation and versatile interchangeable hub configuration allow for flexible mounting on either the intake or discharge side, depending on the specific assembly requirements. Whether you are servicing a rooftop air conditioner or a large walk-in refrigeration system, this CW rotation fan blade provides the balance and durability needed to prevent premature motor bearing wear and maintain peak system efficiency.
Key Benefits
- Interchangeable Hub Design: Allows for field-customization to various shaft sizes using L-type bushings, making it a versatile universal replacement fan blade.
- Corrosion-Resistant Construction: Engineered with heavy-duty aluminum and robust spiders to withstand harsh outdoor environments and coastal salt spray.
- Acoustic Optimization: Rounded blade edges are designed to maximize free air delivery while minimizing turbulence and decibel output.
- High-RPM Performance: Rated for up to 1140 RPM, providing reliable 10,000+ CFM output for industrial condensing units.
Common Questions
What hub or bushing does the Lau 60761101 require?
This blade utilizes an interchangeable hub system. You must select the correct L-style bushing that matches your motor's specific shaft diameter (e.g., 1/2", 5/8", or 3/4") for proper installation.
How do I verify the rotation for this fan blade?
The Lau 60-7611-01 is a Clockwise (CW) rotation blade. Rotation is determined by looking at the discharge side of the blade. Check your existing motor specs to ensure a rotation match before mounting.
Can this blade be used in high-static pressure applications?
This 33-degree pitch propeller is specifically designed for low-pressure, free-air applications such as condenser coils and ventilation. It is not intended for high-static ductwork applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Lau 60761101 Fan Blade
The Lau 60761101 Fan Blade is a professional-grade replacement engineered for high-performance thermal heat transfer in industrial and commercial HVACR systems. This 26-inch condenser fan blade features a precision-formed 4-blade design with a 33-degree pitch, optimized for high CFMs at static pressures commonly found in outdoor condensing units. Built from heavy-duty aluminum with corrosion-resistant spiders, the 60761101 ensures structural integrity under the stress of 1140 RPM operation. The clockwise (CW) rotation and versatile interchangeable hub configuration allow for flexible mounting on either the intake or discharge side, depending on the specific assembly requirements. Whether you are servicing a rooftop air conditioner or a large walk-in refrigeration system, this CW rotation fan blade provides the balance and durability needed to prevent premature motor bearing wear and maintain peak system efficiency.
Key Benefits
- Interchangeable Hub Design: Allows for field-customization to various shaft sizes using L-type bushings, making it a versatile universal replacement fan blade.
- Corrosion-Resistant Construction: Engineered with heavy-duty aluminum and robust spiders to withstand harsh outdoor environments and coastal salt spray.
- Acoustic Optimization: Rounded blade edges are designed to maximize free air delivery while minimizing turbulence and decibel output.
- High-RPM Performance: Rated for up to 1140 RPM, providing reliable 10,000+ CFM output for industrial condensing units.
Common Questions
What hub or bushing does the Lau 60761101 require?
This blade utilizes an interchangeable hub system. You must select the correct L-style bushing that matches your motor's specific shaft diameter (e.g., 1/2", 5/8", or 3/4") for proper installation.
How do I verify the rotation for this fan blade?
The Lau 60-7611-01 is a Clockwise (CW) rotation blade. Rotation is determined by looking at the discharge side of the blade. Check your existing motor specs to ensure a rotation match before mounting.
Can this blade be used in high-static pressure applications?
This 33-degree pitch propeller is specifically designed for low-pressure, free-air applications such as condenser coils and ventilation. It is not intended for high-static ductwork applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
