Lau 60760701 Fan Blade

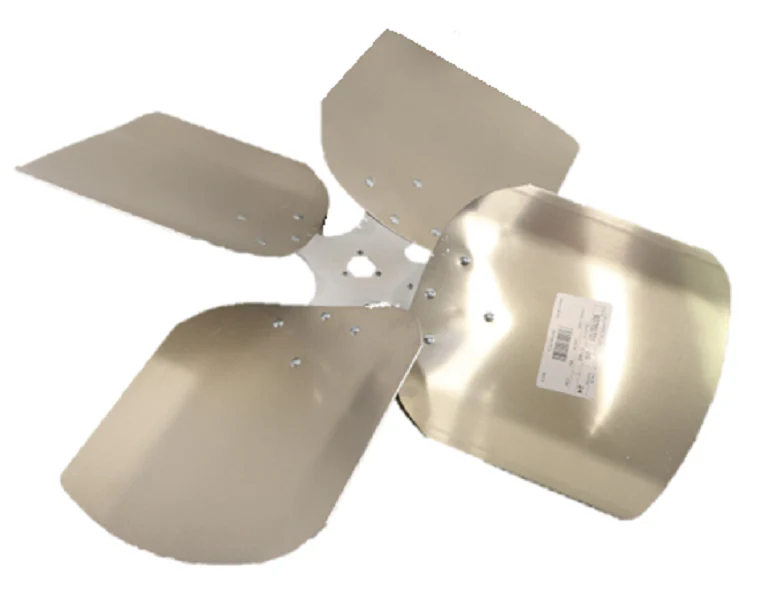

When you're dealing with high-capacity HVAC systems, the Lau 60760701 Fan Blade is the standard for heavy duty condenser style fan blades. Designed for massive heat rejection, this 26 inch 4 blade propeller features a 24 degree pitch, optimized to move up to 7,300 CFM at 1,140 RPM. The clockwise (CW) rotation and high-strength aluminum fan blade construction ensure it handles the static pressure requirements of industrial and commercial condensing units without the vibration issues common in lighter-duty replacements. A major advantage for the service tech is the interchangeable hub system; it allows you to adapt this blade to various motor shaft sizes (from 1/4" to 3/4") by installing the correct hub on either the intake or discharge side. Whether you're servicing a rooftop unit or a large-scale refrigeration system, this HVAC replacement fan blade provides the airflow consistency and corrosion resistance needed for long-term outdoor exposure.
Key Benefits- Universal Shaft Compatibility: Utilizing an interchangeable hub, this 26" blade fits almost any motor shaft size when paired with the appropriate Lau hub.
- Industrial Grade Airflow: Engineered with a 24 degree pitch to deliver high-velocity air movement (7,300 CFM) for efficient condenser coil cooling.
- Corrosion-Resistant Construction: Built with high-strength structural aluminum and a rugged center spider to withstand harsh outdoor environments.
- Precise Balance: Factory-balanced to reduce motor bearing wear and eliminate condenser unit vibration, extending the life of the entire system.
What hub do I need for the Lau 60760701?
This blade requires an interchangeable hub (sold separately). You must select the hub that matches your motor's shaft diameter, such as a 1/2" or 5/8" bore, to ensure a secure fit.
Can this blade be used for CCW applications?
No, the Lau 60760701 is specifically designed for clockwise (CW) rotation. Using it in a counter-clockwise application will result in zero airflow and potential motor overheating.
How do I confirm if a 24 degree pitch is correct for my unit?
Always check the stamp on the original blade. Replacing a lower-pitch blade with a 24-degree pitch can increase the amps on your condenser motor, potentially leading to motor failure if the horsepower rating isn't sufficient.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
