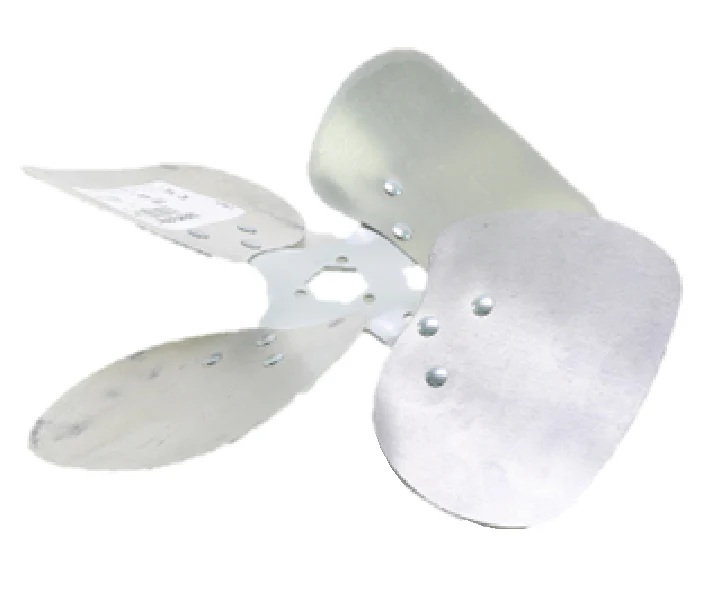

Lau 60718301 Fan Blade
When you're servicing a condenser in the field, you need a high-performance 12-inch condenser fan blade that balances airflow demand with mechanical longevity. The Lau 60718301 is a heavy-duty, 4-blade propeller engineered specifically for high-static environments like commercial condensing units and HVACR ventilation systems. With a 27-degree pitch and clockwise (CW) rotation, this aluminum blade assembly is optimized for localized air movement, delivering approximately 1,302 CFM at standard speeds.
For technicians doing a fan blade cross-reference, the 60718301 features an interchangeable hub design, allowing it to be adapted to various motor shaft diameters (hubs sold separately). The high-strength aluminum blades are riveted to a corrosion-resistant steel spider, ensuring the assembly holds its 27° pitch and remains balanced during high-RPM operation. Whether you are performing an AC fan blade replacement or troubleshooting a vibration issue in a refrigeration unit, this Lau fan blade provides the rigid performance required to maintain head pressure and system efficiency.
Key Benefits for Contractors:- Interchangeable Hub System: Simplifies inventory by allowing one blade to fit multiple shaft sizes (1/4" to 3/4") depending on the hub selected.
- Heavy-Duty Construction: Aluminum blades with a steel spider provide superior resistance to moisture and outdoor exposure compared to standard propellers.
- Precision Pitch: The fixed 27-degree pitch is factory-set for maximum CFM delivery in 12" condenser style fan blade applications.
- Versatile Application: Suitable for condensing units, building exhaust, and agricultural ventilation fans.
How do I determine the correct rotation?
View the blade from the discharge side (the side air is moving toward). This model is Clockwise (CW) rotation. If your motor spins counter-clockwise, this blade will move air in the wrong direction and affect system cooling.
Does this include the hub?
No, this is a hubless propeller. You must select an interchangeable hub (Lau series) that matches your specific motor shaft diameter (e.g., 1/2" or 5/8").
What is the maximum RPM for this blade?
This heavy-duty series is typically rated for standard induction motor speeds up to 1725 RPM; always check the specific rating on the blade label to ensure it matches your motor's output.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
