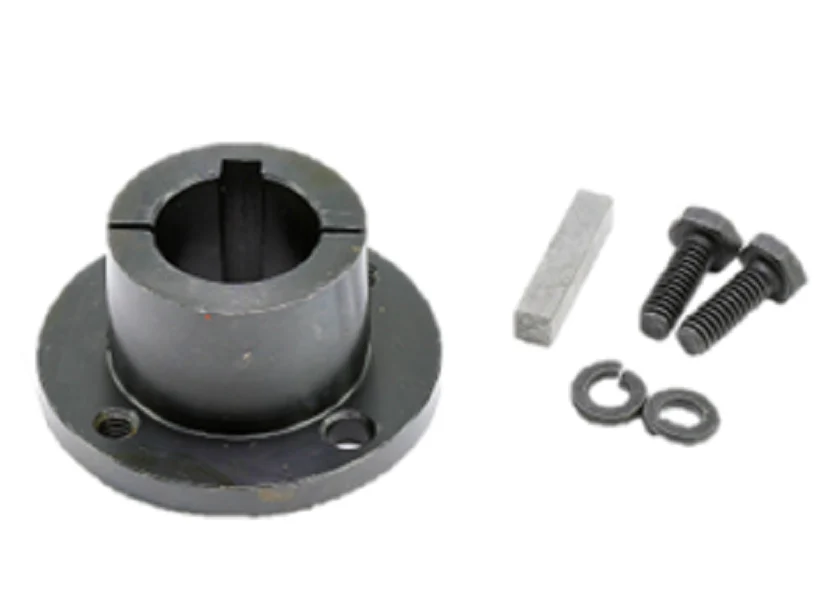

Lau 60331508 Bushing
The Lau 60331508 is a professional-grade H Series Split Taper Bushing engineered for high-torque HVACR applications. Designed with a precise 1" bore and a standard 1/4" x 1/8" keyseat, this component ensures a high-performance connection between shafts and blower wheels or pulleys. The double-split barrel construction allows for a positive clamp fit, providing 360-degree gripping power that effectively eliminates shaft slippage and reduces rotational vibration in heavy-duty air handlers.
Built from durable sintered steel, this interchangeable master bushing is a reliable solution for technicians performing field replacements on Lau, Browning, or wood mechanical drives. The split taper design facilitates easy installation and removal, even in confined blower housings, by utilizing the flange's cap screw holes as jackscrews. With a 3/4" per foot taper, it delivers superior concentricity, maintaining critical alignment for high-RPM fans and preventing premature bearing wear in industrial ventilation systems.
Key Benefits- High Torque Capacity: The split taper design provides a secure mechanical lock capable of handling high-static pressure loads.
- Precision Alignment: Engineered for true concentricity, reducing harmonic noise and extending the life of motor bearings.
- Standardized Specifications: Features a 1-inch bore size with a 1/4" x 1/8" keyway for broad compatibility across HVAC brands.
- Reliable Construction: Manufactured from high-grade steel to resist corrosion and structural fatigue in harsh environments.
- Easy Maintenance: The H-style hub configuration allows for quick disassembly without the need for specialized pullers.
What is the recommended wrench torque for this H-series bushing?
For secure seating, the 1/4" cap screws should be tightened alternately to a recommended torque of 95 in-lbs. Do not use lubricants on the taper or threads, as this can lead to over-torquing and component failure.
Can this bushing be used on a shaft without a keyway?
While the split taper provides significant gripping force, using the 1/4" x 1/8" keyway is required for safety and to ensure full torque transmission in high-demand HVAC fan applications.
Is the Lau 60331508 compatible with Browning H-style hubs?
Yes, this is a standard H-type bushing and is dimensionally interchangeable with other H-series split taper bushings used in pulleys, sheaves, and fan wheels.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
