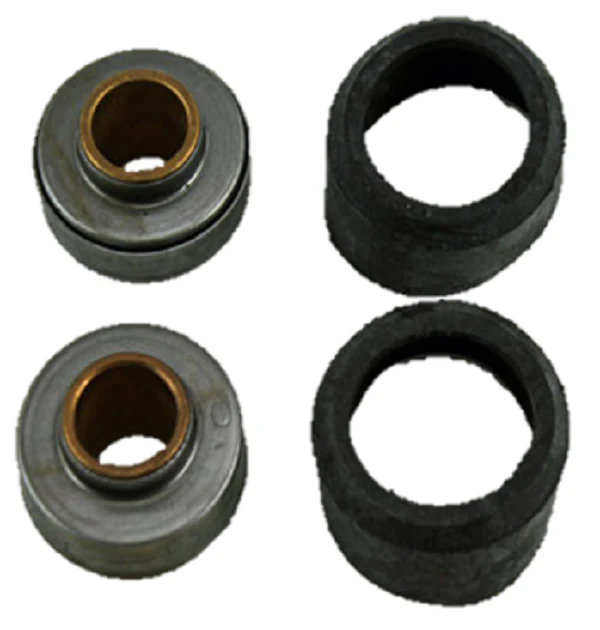

Lau 38244303 Bearing with Insulator
As a veteran tech, you know that a fractional horsepower motor is only as reliable as its support system. The Lau 38244303 Bearing with Insulator is a professional-grade HVAC blower motor bearing replacement engineered for high-demand air handling applications. This assembly features a 1-inch shaft diameter sleeve bearing utilizing a self-aligning, porous bronze sleeve pressed into a sturdy housing. This porous design allows for continuous oil capillary action, though these are factory-packed with a specialized plastic petroleum lubricant to ensure immediate performance upon installation.
The critical component here is the 2.5-inch outside diameter rubber insulator. This high-durometer cushion is specifically sized to isolate vibration and dampen harmonic noise that can resonate through the blower housing. When swapping these out, verify your 1-inch bore sleeve bearing dimensions; the 1-3/8" width and 2-1/2" OD (measured over the rubber) are the industry standard for Lau-Conair and many universal centrifugal blower assemblies. Note that for proper axial stability, sleeve-type bearings like the 38-2443-03 typically require a thrust collar kit for complete installation.
Key Benefits for the Contractor:- Vibration Isolation: The heavy-duty rubber insulator prevents metal-on-metal harmonic transfer, extending the life of the motor and mounting brackets.
- Self-Aligning Design: The porous bronze sleeve automatically adjusts to minor shaft misalignments, reducing friction and preventing premature 1-inch shaft scoring.
- Sealed & Lubricated: Factory-packed petroleum lubrication minimizes maintenance requirements in hard-to-reach blower compartments.
- Contaminant Protection: The sealed configuration protects the bearing race from dust and particulate matter common in return air streams.
Does this bearing replace a standard ball bearing?
No, this is a sleeve-sealed bearing designed for specific motor mounts that utilize a 2-1/2" OD cushion. Always match the bearing type to the original OEM specifications to prevent radial load issues.
Is the thrust collar included with the 38244303?
This part number typically includes the sealed bearing and the rubber insulator. A separate thrust collar kit is recommended to secure the shaft against end-play.
Can these be used in high-heat applications?
These are standard HVAC grade bearings; while the bronze sleeve handles heat well, ensure the rubber insulator is not exposed to temperatures exceeding its thermal rating to prevent degradation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
