Lau 38209301 Bearing

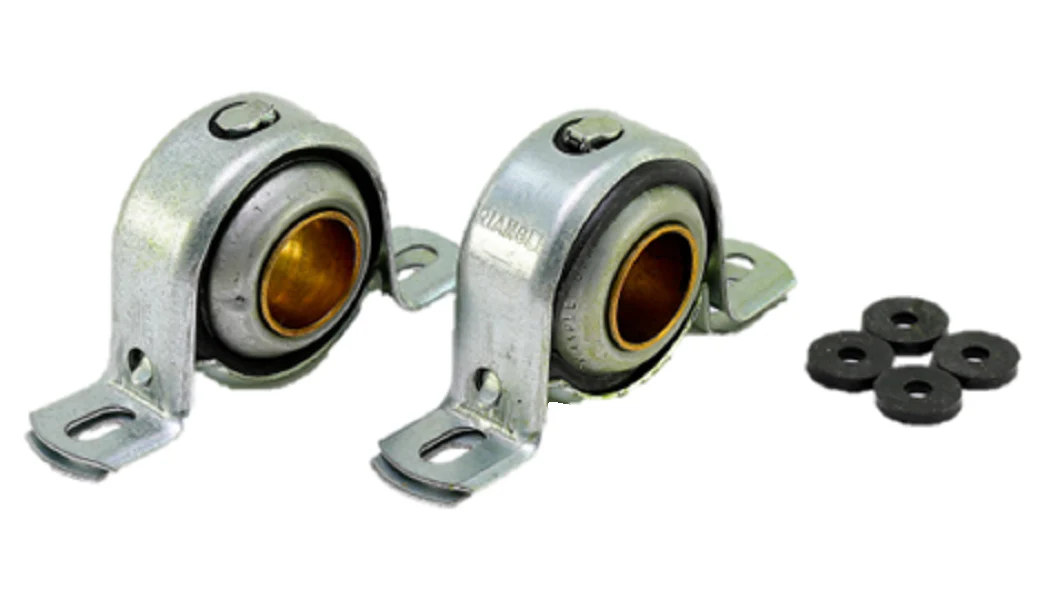

The Lau 38209301 Bearing is a critical heavy duty pillow block sleeve bearing designed for demanding HVACR blower and motor applications. Engineered for a 1 inch shaft diameter, this static-free unit features a re-oilable porous bronze bushing encased in a robust, two-piece interlocking steel housing. The integration of a heavy neoprene cushion provides superior vibration isolation, ensuring quiet operation and reduced mechanical stress on the blower assembly. This self-aligning bearing is a direct replacement for original equipment, maintaining precise shaft centering and consistent HVAC blower performance even under significant radial loads.
Ideal for horizontal shaft applications, the Lau 38209301 utilizes a two-bolt mounting flange with 3-1/2 inch centers for secure installation. The pressed steel ball unit allows for slight misalignments common in field repairs, while the 1-3/16 inch base-to-center height ensures compatibility with standard HVAC motor bearing configurations. Whether you are performing a routine blower motor bearing replacement or upgrading a belt-driven assembly, this steel sleeve bearing provides the durability needed to handle high-torque start-ups and continuous thermal cycling.
Key Benefits- Vibration Dampening: High-density neoprene cushion minimizes harmonic resonance and structural noise.
- Field Serviceable: The re-oilable bronze bushing extends operational life by allowing the introduction of fresh lubricant into the porous matrix.
- Structural Integrity: Two-piece interlocking steel housing resists deformation under heavy belt tension and radial loads.
- Self-Aligning Design: Simplifies installation by compensating for minor shaft or mounting surface irregularities.
- Static-Free Performance: Optimized materials prevent discharge issues that can interfere with sensitive electronic control boards.
- What is the mounting hole spacing for the Lau 38209301? The mounting hardware is spaced at 3-1/2 inches on center, a standard dimension for 1-inch HVAC pillow block bearings.
- Can this bearing be used in vertical shaft applications? No, this sleeve bearing is specifically engineered for horizontal shaft orientations typical of belt-driven blowers.
- Does the package include mounting hardware? This item typically ships as a single unit or pair depending on selection; verify your heavy duty bearing requirements before installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $61.43
-65%$61.43
$21.50Lau 38209301 Bearing
