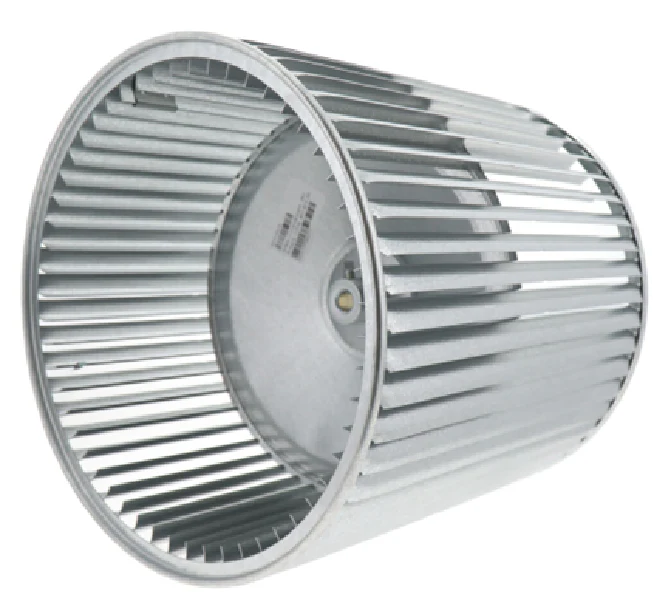

Lau 0573710031X Wheel
For field techs and mechanical contractors, the Lau 0573710031X Wheel is the professional-grade solution for restoring static pressure and CFM performance in high-demand air handlers. This 11x11 1/2 CW blower wheel features the industry-standard Preslok center disc construction, ensuring positive blade retention and structural integrity under high RPM loads. Designed with 53 forward curved blades and a concave center disc, this wheel provides the necessary stability for direct drive blower applications, specifically those found in Carrier, Bryant, and Payne equipment like the LA22ZA120 assembly.
The Lau DD11-11M replacement wheel is manufactured from heavy-duty galvanized cold-rolled steel to resist corrosion and handle operational temperatures up to 200°F. With a 1/2 inch bore size and a clockwise (CW) rotation viewed from the hub end, this wheel is dynamically balanced to eliminate vibration and cabinet resonance. Whether you are performing a seasonal teardown or an emergency motor swap, this double inlet blower wheel ensures your 11 inch diameter blower assembly maintains peak energy efficiency and quiet operation across various residential and light commercial furnace models.
Key Benefits:- Optimized Airflow: The 11" x 11.5" concave design maximizes air volume and static pressure for efficient cooling and heating cycles.
- Preslok Technology: Features mechanical blade-to-hub locking for superior durability compared to standard tabbed wheels.
- Direct OEM Replacement: Precisely matches specifications for Carrier LA22ZA120, minimizing field modification time.
- Vibration-Free Operation: Each unit is factory-balanced to reduce stress on the blower motor bearings and shaft.
- How do I confirm the rotation? This wheel is Clockwise (CW) rotation, determined by looking at the hub/bore end. Always verify your existing motor's rotation before mounting.
- What is the maximum RPM for this wheel? This Lau model is engineered for direct drive speeds, typically handling up to 1,550 RPM, depending on the specific motor horsepower and application.
- Is this compatible with 5/8" motor shafts? No, this specific model features a standard 1/2" bore with a set screw hub. Ensure your blower motor shaft diameter is exactly 0.5 inches.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $169.66
-65%$169.66
$59.38Lau 0573710031X Wheel
For field techs and mechanical contractors, the Lau 0573710031X Wheel is the professional-grade solution for restoring static pressure and CFM performance in high-demand air handlers. This 11x11 1/2 CW blower wheel features the industry-standard Preslok center disc construction, ensuring positive blade retention and structural integrity under high RPM loads. Designed with 53 forward curved blades and a concave center disc, this wheel provides the necessary stability for direct drive blower applications, specifically those found in Carrier, Bryant, and Payne equipment like the LA22ZA120 assembly.
The Lau DD11-11M replacement wheel is manufactured from heavy-duty galvanized cold-rolled steel to resist corrosion and handle operational temperatures up to 200°F. With a 1/2 inch bore size and a clockwise (CW) rotation viewed from the hub end, this wheel is dynamically balanced to eliminate vibration and cabinet resonance. Whether you are performing a seasonal teardown or an emergency motor swap, this double inlet blower wheel ensures your 11 inch diameter blower assembly maintains peak energy efficiency and quiet operation across various residential and light commercial furnace models.
Key Benefits:- Optimized Airflow: The 11" x 11.5" concave design maximizes air volume and static pressure for efficient cooling and heating cycles.
- Preslok Technology: Features mechanical blade-to-hub locking for superior durability compared to standard tabbed wheels.
- Direct OEM Replacement: Precisely matches specifications for Carrier LA22ZA120, minimizing field modification time.
- Vibration-Free Operation: Each unit is factory-balanced to reduce stress on the blower motor bearings and shaft.
- How do I confirm the rotation? This wheel is Clockwise (CW) rotation, determined by looking at the hub/bore end. Always verify your existing motor's rotation before mounting.
- What is the maximum RPM for this wheel? This Lau model is engineered for direct drive speeds, typically handling up to 1,550 RPM, depending on the specific motor horsepower and application.
- Is this compatible with 5/8" motor shafts? No, this specific model features a standard 1/2" bore with a set screw hub. Ensure your blower motor shaft diameter is exactly 0.5 inches.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
