Lau 05099801 Pitch Gauge Tool

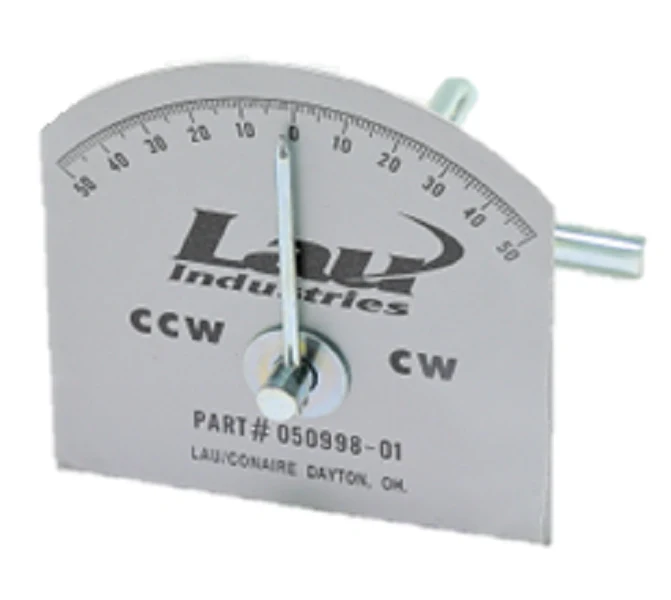

Professional-grade fan blade pitch identification is critical for ensuring system efficiency and preventing motor overload. The Lau 05099801 Pitch Gauge Tool provides a precise, physical reference to determine the exact degree of propeller pitch and rotation direction on any blower wheel or fan blade. Built for the rigors of field service, this HVAC diagnostic tool eliminates the guesswork involved in selecting replacement fan blades, ensuring that the new component matches the original OEM specifications for CFM delivery and static pressure performance. By using the integrated clockwise and counter-clockwise markings, technicians can quickly verify airflow orientation to avoid common installation errors. The tool's design allows for direct readings by seating the gauge faceplate against the blade and placing the wire body foot on the fan spider or hub. Maintaining the correct pitch is essential for optimizing HVAC system performance and extending the service life of the motor by maintaining the designed amp draw.
Key Benefits for Technicians
- Provides a direct reading of pitch in degrees to ensure an exact match for replacement parts.
- Accurately identifies CW and CCW rotation, preventing incorrect airflow and system overheating.
- Durable, industrial-grade construction stands up to repeated use in mechanical room environments.
- Standardized calibration works with a wide range of Lau propellers and universal fan blades.
- Reduces diagnostic time and eliminates costly callbacks due to improper fan blade selection.
Common Questions
How do you use the Lau 05099801 to measure fan pitch?
Place the faceplate of the gauge firmly against the fan blade surface. Position the foot of the wire body on the spider or the center section of the fan hub. The pointer will indicate the degree of pitch on the scale, while the markings show if the rotation is clockwise or counter-clockwise.
Can this tool be used on blades from other manufacturers?
Yes, while designed by Lau, this mechanical pitch gauge is a universal diagnostic instrument capable of measuring the pitch and rotation of most standard HVAC propellers and blower wheels found in the field.
Why is measuring the pitch important during a motor or blade replacement?
Installing a blade with the wrong pitch can significantly alter the load on the motor. Excessive pitch increases amp draw and can lead to motor failure, while insufficient pitch results in low airflow and reduced cooling or heating capacity.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
