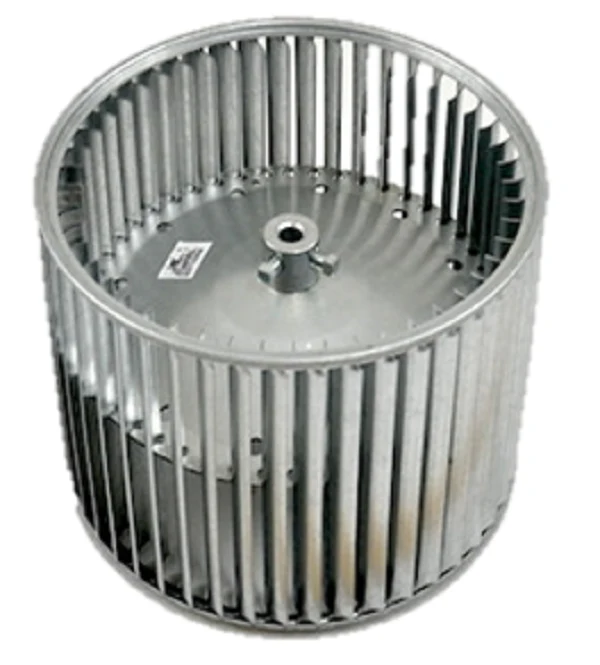

Lau 02710204 Blower Wheel
The Lau 02710204 Blower Wheel, also identified by model DD10-7A, is a high-performance direct drive blower wheel engineered for demanding HVACR applications. This double inlet blower wheel features a 10 5/8" diameter and a 7 1/8" width, constructed from galvanized steel to ensure long-term structural integrity and corrosion resistance in residential and commercial air handlers. Designed with a convex center disc and 48 forward-curved blades, it utilizes the Preslok center disc mechanical attachment for a secure, vibration-free fit on a 1/2" motor shaft. This unit is specifically configured for counter-clockwise (CCW) rotation (determined by viewing the bore end) and supports a maximum speed of 1750 RPM. For technicians performing a squirrel cage replacement, this 10-5/8 blower wheel offers the precise balance and blade alignment necessary to maintain optimal static pressure and airflow efficiency. Ensure your motor specifications align with a 1/2" bore and direct drive mounting before installation.
Key Benefits:
- Universal Compatibility: Serves as a standard universal replacement wheel for various 9" to 11" direct drive blowers across major HVAC brands.
- Industrial Durability: The galvanized steel construction and Preslok center disc provide superior rigidity compared to standard tabbed wheels, preventing blade separation under high torque.
- Quiet Operation: Precision-nested forward-curved blades minimize turbulence and mechanical noise, improving the overall acoustics of the blower assembly.
- High Efficiency: Rated for up to 1750 Max RPM, this wheel maintains consistent performance in high-static pressure systems without compromising structural balance.
Common Questions:
How do I determine the rotation for this Lau blower wheel?
Rotation is determined by looking at the hub or bore end of the wheel. This 02710204 model is a CCW rotation (Counter-Clockwise) unit. If your existing wheel spins clockwise when looking at the hub, you will need the CW equivalent.
Will this wheel fit my motor shaft?
This model features a 1/2" bore designed specifically for motors with a half-inch diameter output shaft. Always verify the shaft diameter with a caliper to ensure a proper fit without using excessive force or shims.
Is this a direct drive or belt drive wheel?
The Lau DD10-7A is a direct drive blower wheel. It is designed to be mounted directly onto the motor shaft, rather than being driven by a pulley and belt system.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
