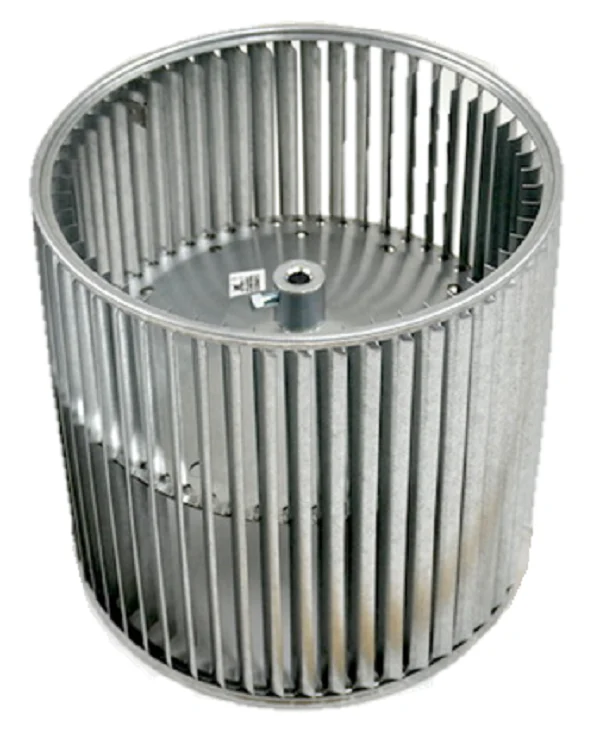

Lau 02694010 Blower Wheel
Standardize your air handling performance with the Lau 02694010 Blower Wheel, a high-efficiency DD11-9A direct drive component designed for precision in commercial and residential HVACR applications. This double inlet blower wheel features a 11-3/4" diameter and a 9-1/2" width, engineered to deliver stable airflow in forward-curved configurations. Built from heavy-duty galvanized steel, this wheel utilizes Preslok center disc construction, ensuring positive blade retention and structural integrity under high centrifugal forces.
The unit is specified for CCW rotation (counter-clockwise) as viewed from the 1/2" convex bore end. With a 1550 max RPM rating and 53 precisely spaced blades, it provides quiet operation and optimal static pressure performance. As a universal replacement blower wheel, it is compatible with a wide range of direct-drive furnace blowers and air handlers, making it a reliable choice for field service technicians requiring 100% OEM compatibility and dynamic balance.
Key Benefits- Preslok Center Disc: High-strength mechanical locking of blades to the center disc ensures durability at maximum operating speeds.
- Corrosion Resistance: Fabricated from galvanized cold-rolled steel for long-term survival in high-humidity environments.
- Dynamic Balance: Factory-balanced to eliminate vibration, extending the service life of the blower motor bearings.
- Optimized Airflow: Forward-curved blade geometry provides high air volume delivery with minimal noise.
What is the correct rotation for the Lau 02694010?
This wheel is designed for counter-clockwise (CCW) rotation. Always verify the rotation by viewing the hub/bore end of the wheel to ensure proper airflow alignment with your housing.
Can this wheel replace a belt-drive blower wheel?
No, this is a direct drive blower wheel specifically designed to be mounted directly onto the motor shaft using its integrated 1/2" bore and hub assembly.
Is the center disc convex or concave?
The Lau 02694010 features a convex center disc, which is standard for the DD11-9A series to accommodate specific motor offsets within the blower assembly.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $134.45
-65%$134.45
$47.06Lau 02694010 Blower Wheel
Standardize your air handling performance with the Lau 02694010 Blower Wheel, a high-efficiency DD11-9A direct drive component designed for precision in commercial and residential HVACR applications. This double inlet blower wheel features a 11-3/4" diameter and a 9-1/2" width, engineered to deliver stable airflow in forward-curved configurations. Built from heavy-duty galvanized steel, this wheel utilizes Preslok center disc construction, ensuring positive blade retention and structural integrity under high centrifugal forces.
The unit is specified for CCW rotation (counter-clockwise) as viewed from the 1/2" convex bore end. With a 1550 max RPM rating and 53 precisely spaced blades, it provides quiet operation and optimal static pressure performance. As a universal replacement blower wheel, it is compatible with a wide range of direct-drive furnace blowers and air handlers, making it a reliable choice for field service technicians requiring 100% OEM compatibility and dynamic balance.
Key Benefits- Preslok Center Disc: High-strength mechanical locking of blades to the center disc ensures durability at maximum operating speeds.
- Corrosion Resistance: Fabricated from galvanized cold-rolled steel for long-term survival in high-humidity environments.
- Dynamic Balance: Factory-balanced to eliminate vibration, extending the service life of the blower motor bearings.
- Optimized Airflow: Forward-curved blade geometry provides high air volume delivery with minimal noise.
What is the correct rotation for the Lau 02694010?
This wheel is designed for counter-clockwise (CCW) rotation. Always verify the rotation by viewing the hub/bore end of the wheel to ensure proper airflow alignment with your housing.
Can this wheel replace a belt-drive blower wheel?
No, this is a direct drive blower wheel specifically designed to be mounted directly onto the motor shaft using its integrated 1/2" bore and hub assembly.
Is the center disc convex or concave?
The Lau 02694010 features a convex center disc, which is standard for the DD11-9A series to accommodate specific motor offsets within the blower assembly.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
