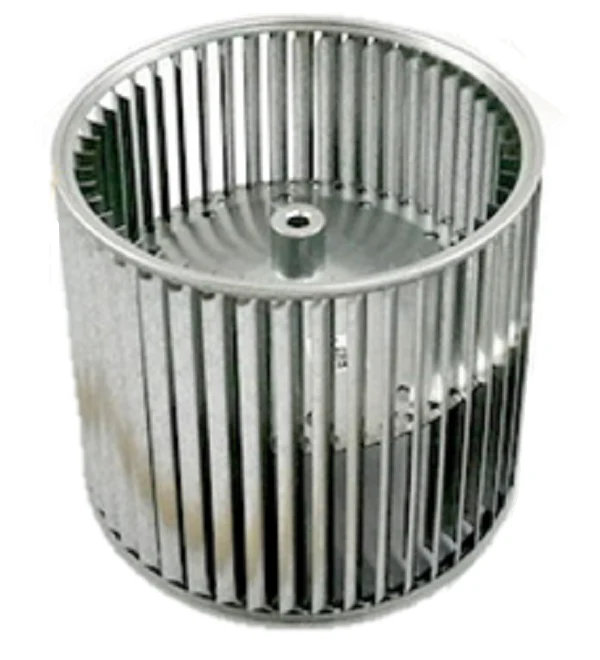

Lau 01332401 Blower Wheel
The Lau 01332401 Blower Wheel is a precision-engineered double inlet blower wheel designed for high-performance direct drive blower systems. This DD10-8A model features a 10 5/8-inch diameter and an 8-inch width, specifically built with a 1/2-inch bore to fit standard HVAC blower motor shafts. Forged from heavy-duty galvanized steel, it utilizes a convex center disc and the Preslok hub system to maintain structural integrity at speeds up to 1750 Max RPM. The forward curved blades (48 total) are meticulously spaced to ensure quiet operation and optimal static pressure in clockwise (CW) rotation configurations. Engineers and technicians trust this universal replacement wheel for its consistent alignment, balance, and ability to handle air temperatures up to 200°F. Whether you are performing a routine swap or a critical emergency repair, the Lau 01332401 provides the mechanical reliability required for demanding residential and light commercial air distribution environments.
- Preslok Center Disc: Features a specialized mechanical locking hub that ensures the wheel remains secure on direct drive motor shafts during high-torque startups.
- Galvanized Construction: The corrosion-resistant steel body extends service life in high-humidity plenum environments.
- Precision Balance: Factory-aligned 48-blade assembly minimizes vibration, reducing bearing wear on the blower motor.
- Versatile Application: Standard 10 5/8" x 8" dimensions make it a compatible replacement for a wide range of OEM furnace and AC air handlers.
Common Questions
Is the rotation for the Lau 01332401 determined from the motor side or the intake side?
This wheel is rated for clockwise (CW) rotation as viewed from the drive/motor end (CWLE). Always verify your existing motor's rotation before installation to ensure proper airflow and prevent motor overheating.
Can this wheel be used in belt-drive applications?
No, the DD10-8A is specifically designed for direct drive applications. The hub and convex center disc assembly are engineered to mount directly to the motor shaft, not to a separate jackshaft or pulley system.
What is the temperature rating for this blower wheel?
The galvanized steel construction is rated for ambient temperatures up to 200°F, making it suitable for standard furnace heat exchangers and evaporator coil environments.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $118.07
-65%$118.07
$41.32Lau 01332401 Blower Wheel
The Lau 01332401 Blower Wheel is a precision-engineered double inlet blower wheel designed for high-performance direct drive blower systems. This DD10-8A model features a 10 5/8-inch diameter and an 8-inch width, specifically built with a 1/2-inch bore to fit standard HVAC blower motor shafts. Forged from heavy-duty galvanized steel, it utilizes a convex center disc and the Preslok hub system to maintain structural integrity at speeds up to 1750 Max RPM. The forward curved blades (48 total) are meticulously spaced to ensure quiet operation and optimal static pressure in clockwise (CW) rotation configurations. Engineers and technicians trust this universal replacement wheel for its consistent alignment, balance, and ability to handle air temperatures up to 200°F. Whether you are performing a routine swap or a critical emergency repair, the Lau 01332401 provides the mechanical reliability required for demanding residential and light commercial air distribution environments.
- Preslok Center Disc: Features a specialized mechanical locking hub that ensures the wheel remains secure on direct drive motor shafts during high-torque startups.
- Galvanized Construction: The corrosion-resistant steel body extends service life in high-humidity plenum environments.
- Precision Balance: Factory-aligned 48-blade assembly minimizes vibration, reducing bearing wear on the blower motor.
- Versatile Application: Standard 10 5/8" x 8" dimensions make it a compatible replacement for a wide range of OEM furnace and AC air handlers.
Common Questions
Is the rotation for the Lau 01332401 determined from the motor side or the intake side?
This wheel is rated for clockwise (CW) rotation as viewed from the drive/motor end (CWLE). Always verify your existing motor's rotation before installation to ensure proper airflow and prevent motor overheating.
Can this wheel be used in belt-drive applications?
No, the DD10-8A is specifically designed for direct drive applications. The hub and convex center disc assembly are engineered to mount directly to the motor shaft, not to a separate jackshaft or pulley system.
What is the temperature rating for this blower wheel?
The galvanized steel construction is rated for ambient temperatures up to 200°F, making it suitable for standard furnace heat exchangers and evaporator coil environments.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
