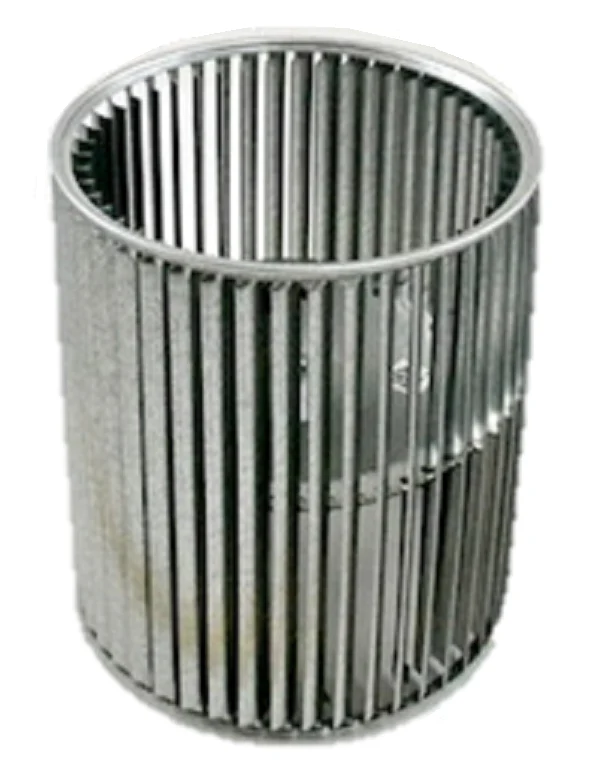

Lau 01331602 Blower Wheel
The Lau 01331602 blower wheel, also identified as model DD10-10A, is a high-performance HVAC centrifugal blower wheel engineered for demanding direct-drive air handling applications. This double inlet blower wheel features a 10-5/8 inch diameter and a 10-5/8 inch width, providing the necessary volume for commercial and residential furnace and air handler assemblies. Constructed with precision-balanced concave blades, the unit is rated for speeds up to 1750 RPM, ensuring stable static pressure and high-efficiency airflow without excess vibration. Designed with a 1/2 inch bore for direct integration with standard motor shafts, this direct drive blower wheel utilizes a clockwise (CW) rotation to maintain proper system dynamics. Whether you are performing a field replacement or a system overhaul, this Lau component provides the structural integrity required for long-term reliability in specialized air movement equipment.
Key Benefits:- Precision-engineered 10-5/8" diameter x 10-5/8" width dimensions for drop-in compatibility.
- Standard 1/2" bore configuration designed for quick mounting on direct-drive motors.
- Maximum 1750 RPM rating supports high-velocity air movement in HVAC cabinets.
- Concave double inlet design optimizes air intake and distribution across the wheel face.
- Factory-balanced construction minimizes harmonic resonance and bearing stress on the motor.
What equipment is compatible with the Lau 01331602?
This component is frequently found in commercial air handlers, residential gas furnaces, and packaged rooftop units that require a double-inlet centrifugal configuration.
How is the rotation of this blower wheel determined?
The DD10-10A is a clockwise (CW) rotation wheel, determined by viewing the unit from the drive side of the assembly.
Why does the concave blade design matter for contractors?
Concave blades are specifically shaped to handle higher static pressures more efficiently than straight blades, resulting in better CFM delivery under load.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
