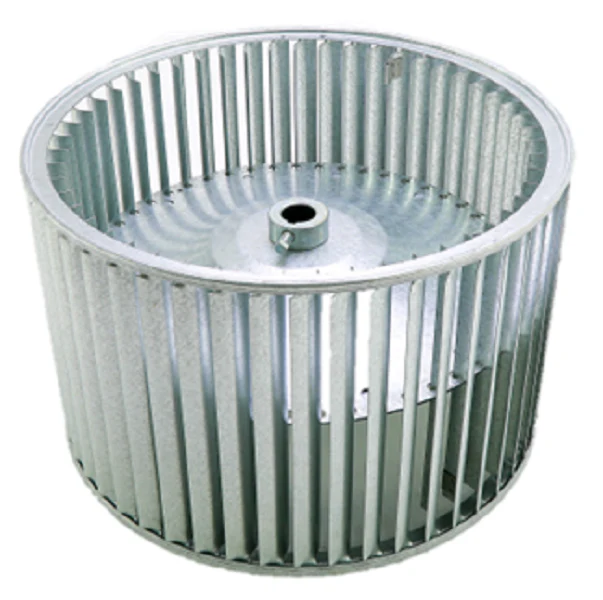

Lau 00954816 Blower Wheel
The Lau 00954816 Blower Wheel, also identified as Model A15-9A, is a heavy-duty double inlet belt drive blower wheel engineered for high-demand air handling applications. This 15" diameter by 9 1/2" wide wheel features Preslok® construction, where 51 blades are mechanically locked into two hubs with a center disc, ensuring structural integrity under high torque. With a 1" bore and a standard 1/4" x 1/8" keyway, this galvanized steel centrifugal wheel is designed for universal replacement in commercial and residential furnaces, air handlers, and ventilation systems. The reversible rotation (CW/CCW) capability and a rated 2500 Max RPM provide the flexibility needed for various belt-drive configurations. Replacing a worn Lau A15-9A wheel restores the static pressure performance and efficient air movement essential for maintaining industrial-grade HVAC system specifications.
- Universal Compatibility: The Model A15-9A serves as a direct replacement for many 15-inch belt-driven centrifugal fans in the field.
- Rugged Preslok Design: Features a high blade count (51) mechanically attached to center discs for superior resistance to vibration at a 2500 Max RPM.
- Corrosion Resistance: Fabricated from galvanized steel to withstand moisture and environmental stressors in rooftop units or basement air handlers.
- Multi-Directional Airflow: The dual-inlet design and CW/CCW rotation support versatile mounting options across different equipment brands.
Common Questions
What are the exact dimensions of the Lau 00954816?
This wheel has an outer diameter of 15 inches and a width of 9 1/2 inches. It is built with a 1-inch bore to fit a 1-inch blower shaft.
Can I use this wheel for both clockwise and counter-clockwise systems?
Yes, the Lau 00954816 is designed for reversible rotation, making it a CW/CCW blower wheel suitable for various motor orientations.
Is the set screw included with this blower wheel?
Yes, the A15-9A belt drive wheel comes equipped with 1 set screw and a 1/4" x 1/8" keyway for secure attachment to the drive shaft.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
