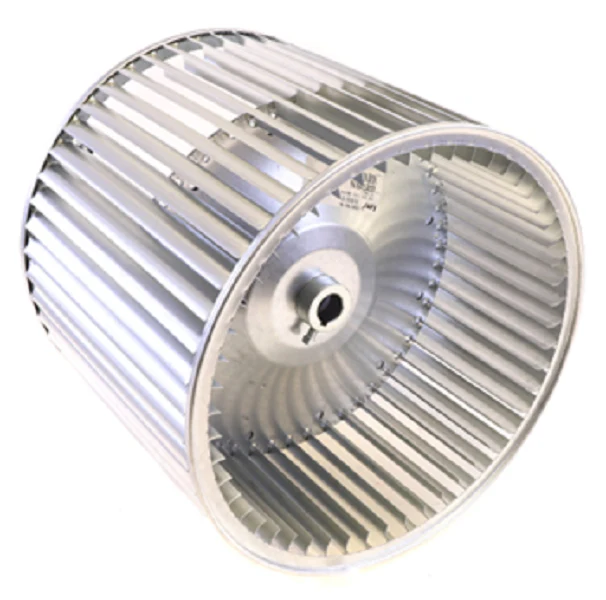

Lau 00874616 Blower Wheel
The Lau 00874616 Blower Wheel is a high-performance A15-12A model designed for heavy-duty belt drive HVAC applications. Built with galvanized steel and featuring Preslok construction, this double inlet wheel ensures the 51 blades remain mechanically locked to the center disc for maximum industrial durability. With a 15" diameter and 12 5/8" width, it is engineered for high-volume air movement in commercial air handlers and furnaces. The 1" bore includes a standard 1/4" x 1/2" keyway and a single set screw for secure shaft mounting. This universal replacement blower wheel supports both CW/CCW rotation, providing versatility for various blower housing configurations. Rated for a 1900 Max RPM, it delivers consistent static pressure performance. For technicians performing a blower motor assembly repair, this wheel offers a precise fit and balanced operation to eliminate vibration and extend the service life of air handling units.
Key Benefits- Preslok Blade Design: Mechanically attached blades provide superior retention and stability compared to standard pressed wheels.
- Universal Rotation: Supports both clockwise and counter-clockwise configurations for simplified field installation.
- Corrosion Resistance: Heavy-gauge galvanized steel construction protects against moisture and environmental wear.
- High-Speed Rating: Capable of handling up to 1900 RPM for demanding commercial ventilation requirements.
What are the exact dimensions for shaft compatibility?
This wheel features a 1-inch bore size with a 1/4" x 1/2" keyway, designed to fit standard 1-inch blower shafts used in belt-driven systems.
Does this wheel include the hub and set screw?
Yes, the 00874616 comes with a double-hub design and the required set screw for securing the wheel to the motor or jackshaft.
Can this be used in both heating and cooling applications?
This A15-12A model is suitable for air handlers, furnaces, and condensers that utilize a belt-drive blower assembly.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
