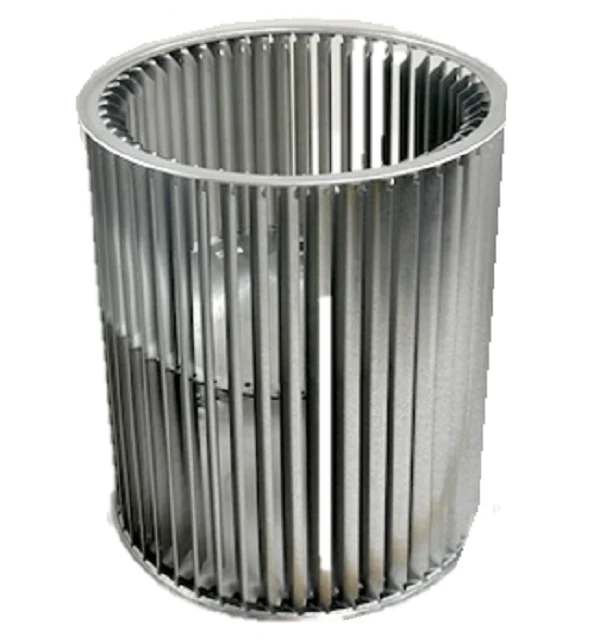

Lau 00865816 Blower Wheel
When you're servicing industrial air handlers or large-scale furnace blowers, the Lau 00865816 Blower Wheel (Model A18-18A) is the technician's standard for belt drive HVAC applications. This double inlet blower wheel is engineered with a center disc mechanically locked to each blade using the Preslok wheel design, ensuring the assembly handles 1200 Max RPM without blade distortion. With an 18 5/8" diameter and 18 5/8" width, it delivers high-volume air circulation for commercial systems. The 1" bore features a 1/4 x 1/2 keyway and a single set screw for a secure fit on the motor shaft. Because it supports both CW/CCW rotation, this double inlet centrifugal fan wheel serves as a versatile universal replacement blower wheel. Constructed from galvanized steel, it resists corrosion in high-moisture environments, maintaining balance and efficiency in industrial ventilation setups. This wheel is built for HVAC blower motor compatibility where reliability is non-negotiable.
- Universal Flexibility: Supports both clockwise and counter-clockwise rotation, reducing truck stock requirements for double inlet belt drive systems.
- Preslok Construction: Mechanically attached blades provide superior structural integrity at 1200 RPM compared to standard tab-lock wheels.
- Corrosion Resistance: Galvanized steel finish protects the centrifugal wheel from oxidation in heavy-use air handlers.
- Precision Fit: Features a 1" bore with a standard 1/4 x 1/2 keyway for direct replacement on many A18-18A blower assemblies.
Common Questions
Is the Lau 00865816 compatible with both clockwise and counter-clockwise systems?
Yes, this double inlet blower wheel is designed for CW/CCW rotation, making it a drop-in universal replacement for most belt-driven units of this size.
What is the maximum speed rating for the A18-18A wheel?
This blower wheel is rated for a 1200 Max RPM. Exceeding this limit can cause structural failure and is not recommended for high-static pressure applications.
Does this wheel include the necessary mounting hardware?
The unit comes with a pre-installed 1/4 x 1/2 keyway and a set screw to ensure a rigid connection to a 1" bore shaft.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
