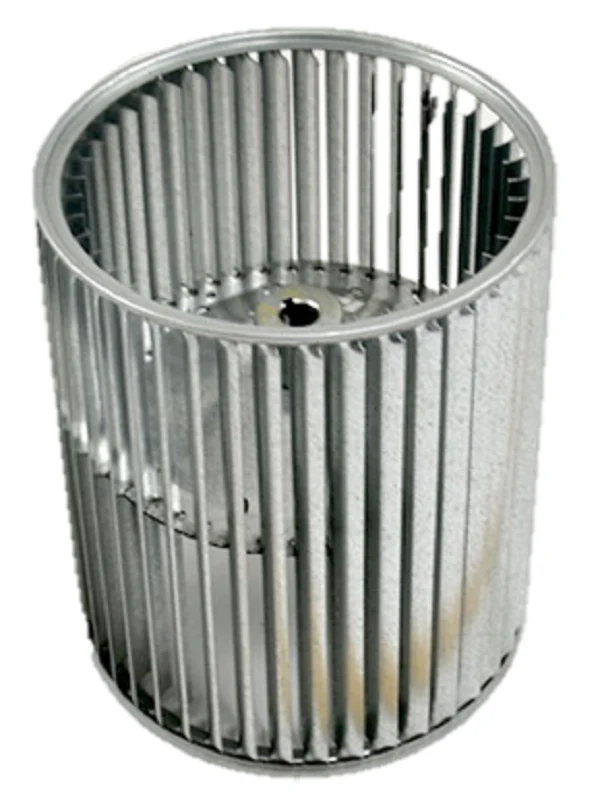

Lau 00851912 Blower Wheel
The Lau 00851912 Blower Wheel, also identified as Model A9-9A, is a high-performance replacement blower wheel engineered for demanding belt-drive HVACR applications. This double inlet centrifugal fan features a 9.5-inch diameter and 9.5-inch width, providing the necessary static pressure for consistent airflow in commercial and residential air handling units. Constructed with galvanized steel and utilizing a Preslok wheel design, the blades are mechanically attached to the center disc via two hubs for maximum structural integrity. The 3/4-inch bore hub includes a single set screw and a 3/16 x 3/32 keyway to ensure a secure, slip-free connection to the motor shaft. With a 2400 max RPM rating, this industrial blower wheel is balanced for dual rotation (CW/CCW), offering versatile compatibility across various blower housing configurations. Its forward-curved blade geometry is specifically designed to minimize vibration and noise, making it a reliable choice for furnace blower wheel maintenance and high-static ventilation tasks.
Key Benefits
- Universal Compatibility: The Model A9-9A design with dual rotation capability allows this 9.5 x 9.5 blower wheel to replace numerous OEM parts in both clockwise and counter-clockwise systems.
- Durable Construction: Heavy-duty galvanized steel blades and Preslok mechanical locking provide superior resistance to torque and corrosion.
- High-Speed Performance: Rated for up to 2400 RPM, making it suitable for high-velocity belt drive blower assemblies.
- Precision Fit: Features a standard 3/4" bore with a integrated 3/16" x 3/32" keyway for professional-grade mechanical power transmission.
Common Questions
How do I confirm if this Lau wheel replaces my existing squirrel cage? Check your current wheel for the Lau 00851912 or A9-9A stamp. Measure the diameter and width (both 9-1/2") and verify your motor shaft is 3/4" with a keyway. Can this blower wheel be used in direct drive motors? No, this specific model is a belt drive blower wheel designed for use with pulleys and belts. Direct drive wheels typically require a different hub configuration. Does rotation direction matter when installing the A9-9A? This double inlet wheel is designed for CW/CCW rotation, meaning it can be installed in housings requiring either lead-edge direction, provided the hub and set screw are positioned correctly on the shaft.This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Lau 00851912 Blower Wheel
The Lau 00851912 Blower Wheel, also identified as Model A9-9A, is a high-performance replacement blower wheel engineered for demanding belt-drive HVACR applications. This double inlet centrifugal fan features a 9.5-inch diameter and 9.5-inch width, providing the necessary static pressure for consistent airflow in commercial and residential air handling units. Constructed with galvanized steel and utilizing a Preslok wheel design, the blades are mechanically attached to the center disc via two hubs for maximum structural integrity. The 3/4-inch bore hub includes a single set screw and a 3/16 x 3/32 keyway to ensure a secure, slip-free connection to the motor shaft. With a 2400 max RPM rating, this industrial blower wheel is balanced for dual rotation (CW/CCW), offering versatile compatibility across various blower housing configurations. Its forward-curved blade geometry is specifically designed to minimize vibration and noise, making it a reliable choice for furnace blower wheel maintenance and high-static ventilation tasks.
Key Benefits
- Universal Compatibility: The Model A9-9A design with dual rotation capability allows this 9.5 x 9.5 blower wheel to replace numerous OEM parts in both clockwise and counter-clockwise systems.
- Durable Construction: Heavy-duty galvanized steel blades and Preslok mechanical locking provide superior resistance to torque and corrosion.
- High-Speed Performance: Rated for up to 2400 RPM, making it suitable for high-velocity belt drive blower assemblies.
- Precision Fit: Features a standard 3/4" bore with a integrated 3/16" x 3/32" keyway for professional-grade mechanical power transmission.
Common Questions
How do I confirm if this Lau wheel replaces my existing squirrel cage? Check your current wheel for the Lau 00851912 or A9-9A stamp. Measure the diameter and width (both 9-1/2") and verify your motor shaft is 3/4" with a keyway. Can this blower wheel be used in direct drive motors? No, this specific model is a belt drive blower wheel designed for use with pulleys and belts. Direct drive wheels typically require a different hub configuration. Does rotation direction matter when installing the A9-9A? This double inlet wheel is designed for CW/CCW rotation, meaning it can be installed in housings requiring either lead-edge direction, provided the hub and set screw are positioned correctly on the shaft.This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
