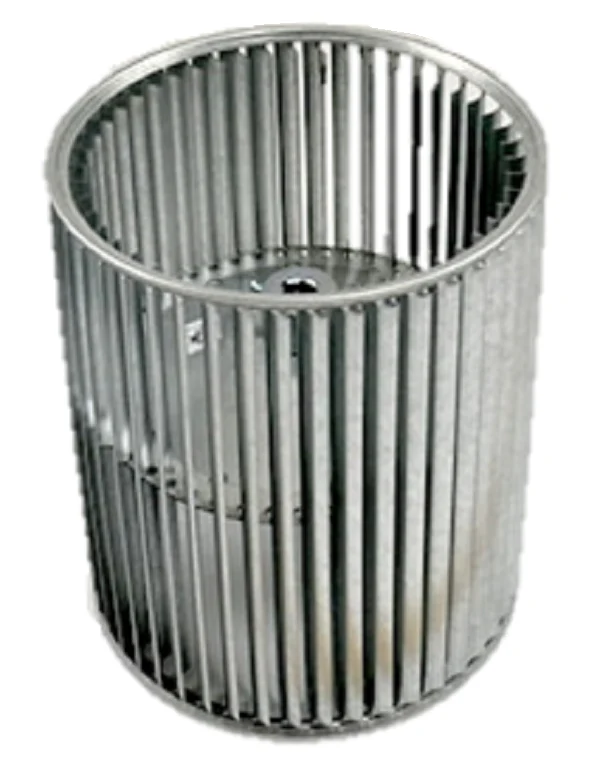

Lau 00836012 Blower Wheel
The Lau 00836012 Blower Wheel is a heavy-duty, galvanized steel A10-10A model engineered for high-static belt drive applications. Featuring a 10 5/8" diameter and 10 5/8" width, this double-inlet centrifugal wheel utilizes Preslok technology, where each of the 48 blades is mechanically locked into the center disc and two separate hubs for superior structural integrity. Rated for a 2100 max RPM, this universal replacement supports both CW and CCW rotation, providing flexibility for diverse air handler and furnace configurations. The 3/4" bore includes a precision-machined 3/16" x 3/32" keyway and a single set screw, ensuring a secure fit on the motor shaft even under high torque loads. This centrifugal blower fan is built to withstand rigorous commercial HVAC service, offering a reliable solution for technicians needing an exact fit for belt drive blower wheel replacements.
Key Benefits- Preslok Construction: Provides enhanced blade-to-hub security, preventing blade detachment at high rotational speeds.
- Universal Rotation: Designed for versatility, supporting both clockwise and counter-clockwise airflow patterns.
- Corrosion Resistance: Fabricated from galvanized steel to prevent oxidation in high-moisture environments.
- High-RPM Stability: Dynamically balanced to operate smoothly up to 2100 RPM, reducing vibration and mechanical wear.
What is the difference between a 5/8" and 3/4" bore for this model?
The Lau 00836012 specifically features a 3/4" bore. Using the incorrect bore size will prevent the wheel from seating on the shaft or cause excessive play. Always verify your motor shaft diameter before installation.
Can this wheel be used in direct drive systems?
This model is specifically balanced and reinforced for belt drive applications. Using a belt-drive wheel in a direct-drive application may lead to mounting issues due to the hub configuration.
How many set screws are included for shaft security?
The 00836012 (A10-10A) comes with one heavy-duty set screw and a standard 3/16" x 3/32" keyway to lock the wheel to the keyed motor shaft.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
