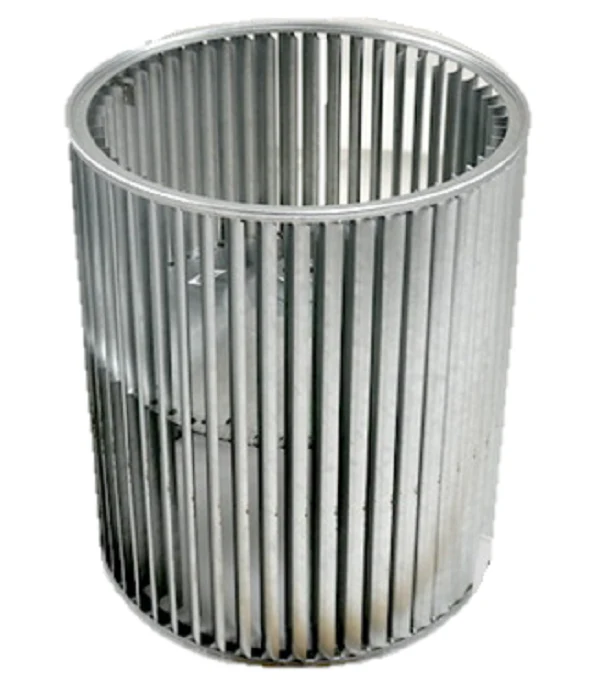

Lau 00827616 Blower Wheel
The Lau 00827616 Blower Wheel is a high-capacity, 15-inch double inlet blower wheel designed for demanding HVAC belt drive applications. Built with Preslok® construction, this Model A15-15A features centrifugal blades mechanically locked to the center disc, ensuring structural integrity in commercial air handlers and furnaces. With a 15" diameter and 15" width, this galvanized steel wheel is engineered to deliver high-volume airflow while maintaining 1550 max RPM stability. The 1" bore includes a 1/4" x 1/2" keyway and a single set screw for a secure fit on the fan shaft. Its reversible design supports both CW/CCW rotation, providing universal compatibility for technicians replacing worn squirrel cage fans. This replacement blower wheel is specifically balanced to minimize vibration and maximize the performance of belt-driven ventilation systems, making it a reliable choice for field repairs where OEM-spec 15x15 blower wheels are required.
Key Benefits
- Preslok Technology: Employs mechanically attached blades for superior strength compared to standard staked wheels.
- Corrosion Resistance: Heavy-duty galvanized steel construction protects against moisture in air handling units.
- Universal Rotation: Reversible hub design allows for clockwise or counter-clockwise operation.
- High Volume Airflow: Dual inlet design maximizes intake, optimized for belt drive HVAC systems.
Common Questions
- Will this wheel replace a direct drive motor wheel? No, this is a double inlet belt drive blower wheel specifically designed for pulley-driven systems.
- What is the maximum speed rating? This wheel is rated for a maximum of 1550 RPM.
- Does it include the shaft? This is the blower wheel only; shafts, bearings, and pulleys must be sourced separately.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
