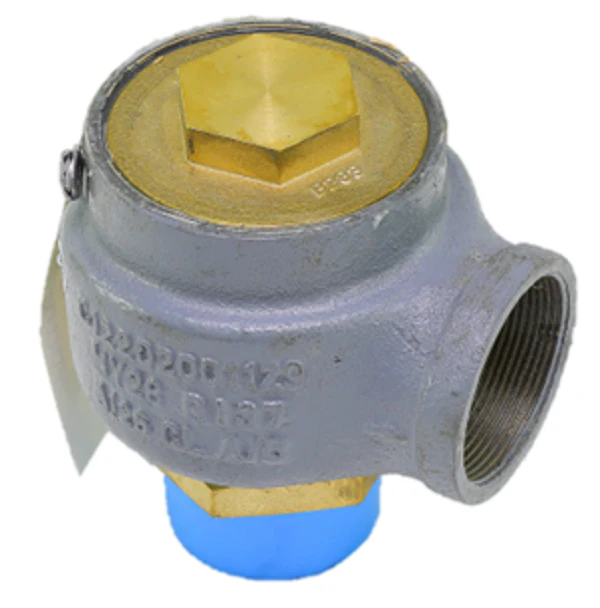

Kunkle Valve 215V-H01AQE0015 Relief Valve
The Kunkle Valve 215V-H01AQE0015 is a high-performance vacuum relief valve engineered for heavy-duty protection in industrial vacuum systems. Featuring a robust cast iron body and a full nozzle design, this 2-inch valve is factory-set at 15" Hg vacuum with a high-flow capacity of 426 SCFM. Designed for non-code vacuum air service, it utilizes a 2-inch Female NPT inlet and a 2-inch Male NPT outlet, making it a drop-in solution for positive displacement blowers, pneumatic conveying systems, and bulk hauling equipment. The internal bronze disc and nozzle are lapped for a precision metal-to-metal seat, ensuring optimal seal integrity and longevity under continuous thermal cycling. A built-in warn ring allows for fine-tuning the opening point to minimize simmer, while the pivot design between the disc and spring compensates for side thrust, maintaining perfect alignment. This unit is essential for preventing tank implosion and protecting high-volume vacuum pumps from over-pressure scenarios in demanding contractor environments.
Key Benefits- High-Flow Capacity: Delivers 426 SCFM at a 15 inch Hg set point to ensure rapid vacuum relief.
- Industrial Durability: Constructed with a cast iron body and bronze trim for resistance to mechanical stress.
- Precision Alignment: Pivot-style internal linkage prevents spring side thrust and ensures consistent reseating.
- Versatile Piping: Standard 2 inch NPT connections (Female Inlet x Male Outlet) facilitate easy installation in existing manifolds.
- System Protection: Ideal for protecting light gauge tanks and vacuum pumps from atmospheric pressure damage.
Is the Kunkle 215V-H01AQE0015 suitable for steam or liquid service?
No, this specific model is a non-code vacuum air relief valve designed exclusively for air and non-hazardous gas service. It should not be used for liquid or steam applications.
Can the vacuum set point be adjusted in the field?
While the valve features a warn ring for adjusting opening precision and blowdown, the primary vacuum set point is factory-set and sealed to prevent unauthorized tampering or accidental system failure.
What is the maximum temperature rating for this relief valve?
This valve is rated for a temperature range of -20°F to 406°F, making it suitable for high-temperature discharge or suction environments typical in industrial blower systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $512.25
-65%$512.25
$179.29Kunkle Valve 215V-H01AQE0015 Relief Valve
The Kunkle Valve 215V-H01AQE0015 is a high-performance vacuum relief valve engineered for heavy-duty protection in industrial vacuum systems. Featuring a robust cast iron body and a full nozzle design, this 2-inch valve is factory-set at 15" Hg vacuum with a high-flow capacity of 426 SCFM. Designed for non-code vacuum air service, it utilizes a 2-inch Female NPT inlet and a 2-inch Male NPT outlet, making it a drop-in solution for positive displacement blowers, pneumatic conveying systems, and bulk hauling equipment. The internal bronze disc and nozzle are lapped for a precision metal-to-metal seat, ensuring optimal seal integrity and longevity under continuous thermal cycling. A built-in warn ring allows for fine-tuning the opening point to minimize simmer, while the pivot design between the disc and spring compensates for side thrust, maintaining perfect alignment. This unit is essential for preventing tank implosion and protecting high-volume vacuum pumps from over-pressure scenarios in demanding contractor environments.
Key Benefits- High-Flow Capacity: Delivers 426 SCFM at a 15 inch Hg set point to ensure rapid vacuum relief.
- Industrial Durability: Constructed with a cast iron body and bronze trim for resistance to mechanical stress.
- Precision Alignment: Pivot-style internal linkage prevents spring side thrust and ensures consistent reseating.
- Versatile Piping: Standard 2 inch NPT connections (Female Inlet x Male Outlet) facilitate easy installation in existing manifolds.
- System Protection: Ideal for protecting light gauge tanks and vacuum pumps from atmospheric pressure damage.
Is the Kunkle 215V-H01AQE0015 suitable for steam or liquid service?
No, this specific model is a non-code vacuum air relief valve designed exclusively for air and non-hazardous gas service. It should not be used for liquid or steam applications.
Can the vacuum set point be adjusted in the field?
While the valve features a warn ring for adjusting opening precision and blowdown, the primary vacuum set point is factory-set and sealed to prevent unauthorized tampering or accidental system failure.
What is the maximum temperature rating for this relief valve?
This valve is rated for a temperature range of -20°F to 406°F, making it suitable for high-temperature discharge or suction environments typical in industrial blower systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
