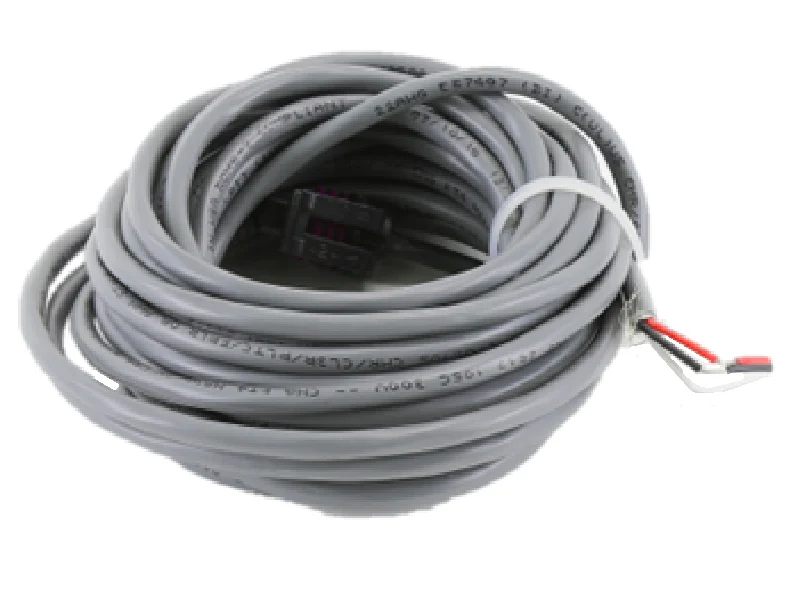

Johnson Controls WHA-PKD3-600C Wire Harness
The Johnson Controls WHA-PKD3-600C Wire Harness is a critical 19' 5/8" (6.0m) assembly engineered for high-precision HVACR pressure monitoring. Designed specifically for integration with P499 and P598 series pressure transducers, this harness features a factory-terminated 3-wire Packard connector that ensures a secure, weather-resistant interface for PENN control systems. The extended 19-foot cable length simplifies remote sensor installation, allowing technicians to mount transducers in optimal locations while maintaining a direct, low-resistance signal path to the master controller.
Built for the rigors of the field, the WHA-PKD3-600C supports 24V AC/DC power supplies and maintains operational integrity across a broad thermal range of -40°F to 158°F. Using this OEM-spec wiring harness eliminates the signal interference and voltage drop common with field-spliced connections. Whether you are performing a refrigeration system retrofit or replacing a damaged pressure transducer cable, this harness provides the plug-and-play reliability required to maintain accurate head pressure control and system safety parameters.
Key Benefits for the Contractor- Seamless Compatibility: Specifically designed for P499 and P598 transducers to ensure proper pin-out and voltage regulation.
- Extended Reach: The 19' 5/8" length provides maximum flexibility for HVAC sensor wiring in large-scale commercial rooftop or rack applications.
- Industrial-Grade Sealing: The Packard style connector utilizes internal seals to prevent moisture ingress and terminal corrosion in high-humidity environments.
- Reduced Diagnostic Time: Standardized color-coding and factory-crimped terminals minimize wiring errors and intermittent signal issues.
What pressure transducers is this harness compatible with?
This harness is the standard 6.0-meter replacement for Johnson Controls P499 and P598 electronic pressure transducers utilizing the 3-pin Packard connection interface.
Can I use this wire harness for outdoor condenser applications?
Yes. The WHA-PKD3-600C is rated for a wide temperature envelope and features a jacketed design suitable for the vibration and thermal cycling typical of outdoor HVACR equipment.
Does this harness support 4-20 mA or 0-10V signals?
It is compatible with various output signals (including 4-20 mA, 0.5-4.5 VDC, and 0-10 VDC) depending on the specific transducer model it is paired with, as the harness serves as the primary conductor for the 3-wire signal loop.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $39.73
-65%$39.73
$13.91Johnson Controls WHA-PKD3-600C Wire Harness
