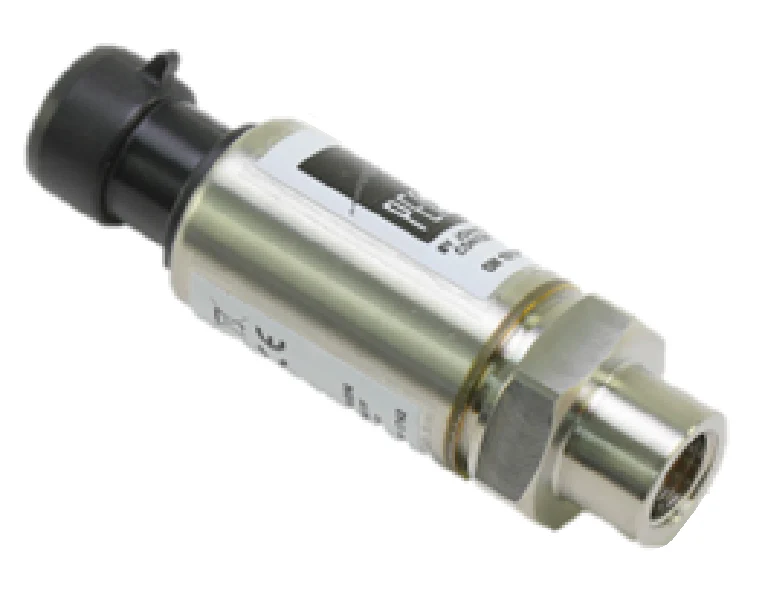

Johnson Controls P499RCPS102 Pressure Transducer
Professionals in the commercial refrigeration and HVACR sectors rely on the Johnson Controls P499RCPS102 for high-accuracy pressure monitoring. Built with a single-piece machined 17-4PH stainless steel pressure port, this electronic pressure transducer eliminates common failure points like O-rings and welds, ensuring a leak-proof seal even under significant physical shock and vibration. It features a 0 to 200 psi range and provides a 0.5 to 4.5 Vdc ratiometric output signal, making it a critical component for HVAC pressure control and fan speed regulation. The sealed gauge design is specifically engineered for durability in harsh environments, featuring IP67 rated electronics that resist damage from icing, condensation, and temperature swings. For simplified field installation, the unit includes a standard 1/4" SAE 45-degree flare internal thread (7/16-20 UNF) and a Packard electrical connection, maintaining a slender body profile that allows for zero-turning-radius mounting with deep-socket wrenches.
Key Benefits- Corrosion Resistance: The 17-4PH stainless steel construction is compatible with most non-corrosive refrigerants, ammonia, water, and glycol.
- High Accuracy: Delivers a 1% total error band for precise 0.5 to 4.5 Vdc output across the full 0-200 psi spectrum.
- Rugged Reliability: Digitally compensated electronics are environmentally protected to withstand the rigors of suction line freeze/thaw cycles.
- Leak Protection: The all-metal, weldless pressure system significantly reduces the risk of refrigerant loss.
What wiring is required for the P499RCPS102?
This model utilizes a Packard electrical connection. While the transducer is sold individually, it requires a compatible three-wire harness to interface with your controller or PLC. P499 series transducers are commonly used with standard 2-meter harness options.
Is this transducer compatible with ammonia systems?
Yes, the 17-4PH stainless steel port is suitable for use with ammonia. However, ensure that all electrical piping and cabinet seals are strictly maintained to prevent ammonia migration to sensitive electronics.
Can I use this for suction line pressure monitoring?
With a range of 0 to 200 psi and sealed gauge construction, this unit is well-suited for suction and discharge monitoring in typical medium-pressure refrigeration applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $196.32
-65%$196.32
$68.71Johnson Controls P499RCPS102 Pressure Transducer
Professionals in the commercial refrigeration and HVACR sectors rely on the Johnson Controls P499RCPS102 for high-accuracy pressure monitoring. Built with a single-piece machined 17-4PH stainless steel pressure port, this electronic pressure transducer eliminates common failure points like O-rings and welds, ensuring a leak-proof seal even under significant physical shock and vibration. It features a 0 to 200 psi range and provides a 0.5 to 4.5 Vdc ratiometric output signal, making it a critical component for HVAC pressure control and fan speed regulation. The sealed gauge design is specifically engineered for durability in harsh environments, featuring IP67 rated electronics that resist damage from icing, condensation, and temperature swings. For simplified field installation, the unit includes a standard 1/4" SAE 45-degree flare internal thread (7/16-20 UNF) and a Packard electrical connection, maintaining a slender body profile that allows for zero-turning-radius mounting with deep-socket wrenches.
Key Benefits- Corrosion Resistance: The 17-4PH stainless steel construction is compatible with most non-corrosive refrigerants, ammonia, water, and glycol.
- High Accuracy: Delivers a 1% total error band for precise 0.5 to 4.5 Vdc output across the full 0-200 psi spectrum.
- Rugged Reliability: Digitally compensated electronics are environmentally protected to withstand the rigors of suction line freeze/thaw cycles.
- Leak Protection: The all-metal, weldless pressure system significantly reduces the risk of refrigerant loss.
What wiring is required for the P499RCPS102?
This model utilizes a Packard electrical connection. While the transducer is sold individually, it requires a compatible three-wire harness to interface with your controller or PLC. P499 series transducers are commonly used with standard 2-meter harness options.
Is this transducer compatible with ammonia systems?
Yes, the 17-4PH stainless steel port is suitable for use with ammonia. However, ensure that all electrical piping and cabinet seals are strictly maintained to prevent ammonia migration to sensitive electronics.
Can I use this for suction line pressure monitoring?
With a range of 0 to 200 psi and sealed gauge construction, this unit is well-suited for suction and discharge monitoring in typical medium-pressure refrigeration applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
